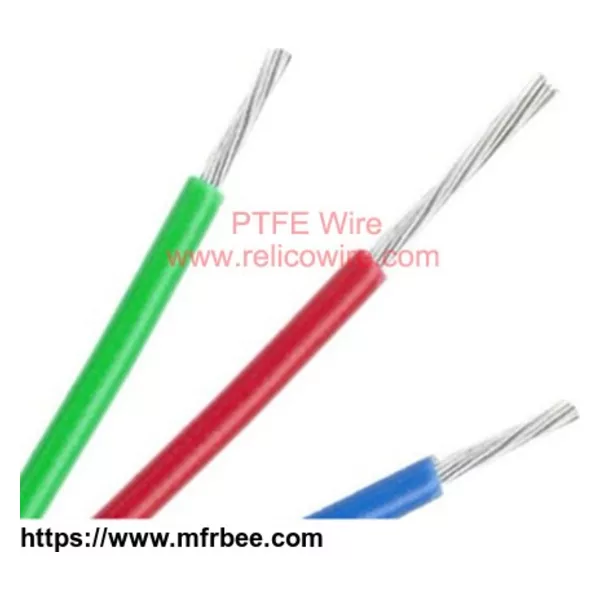

FF4-2: Silver Plated Copper, PTFE Insulated High Temperature Wire

Product Quick Detail

Model Description

FF4-3: Nickel Plated Copper, PTFE Insulated High Temperature Wire

Specification And Construction Data

Conductor sizemm²	Conductor Construction Roots/mm	Insulation Thicknesmm	Wire Diametermm	Conductor Electric Resistance ≤Ω/km	Weightkg/km
FF4-2	FF4-3
0.08	7/0.12	0.20±0.02	0.84±0.08	250	270	1.87
0.14	19/0.10	0.25±0.02	0.95±0.08	128	148	2.53
0.2	7/0.20	0.25±0.02	1.10±0.10	83.5	92	3.51
0.35	19/0.16	0.27±0.03	1.34±0.10	49.5	52.5	5.91
0.5	19/0.18	0.27±0.03	1.54±0.10	30.1	32.1	8.36
0.75	19/0.23	0.35±0.03	1.85±0.10	22.7	24.3	11.1
1	19/0.26	0.35±0.03	2.00±0.10	19.0	20	13.6
1.2	19/0.28	0.35±0.03	2.10±0.10	15.3	16.4	15.3
1.5	19/0.32	0.35±0.03	2.30±0.10	11.7	12.6	19.1
2	19/0.37	0.40±0.04	2.65±0.10	8.78	9.84	25.6
2.5	37/0.30	0.40±0.04	2.90±0.15	6.86	7.37	31.5
3	37/0.32	0.45±0.04	3.14±0.15	6.03	6.50	36.4
4	37/0.37	0.45±0.04	3.49±0.15	4.51	4.83	46.9
5	37/0.41	0.55±0.05	3.97±0.15	3.67	4.07	59.0
6	37/0.45	0.55±0.05	4.25±0.15	3.05	3.26	69.5

Order Information

1、The length of wire manufacturing is not less than 20 meter. Delivery of short segments with a length of not less than 10 meters is aviable and the percent is not over 10%. Delivery may also be made at any length in accordance with the agreement.
2、Conductor materials and constructions, such as nickel plated or nickel plated, may be made according to the agreement.
3、There are red, black, yellow, blue, green, white, brown, orange, purple, gray, transparent and translucent colors for election.
