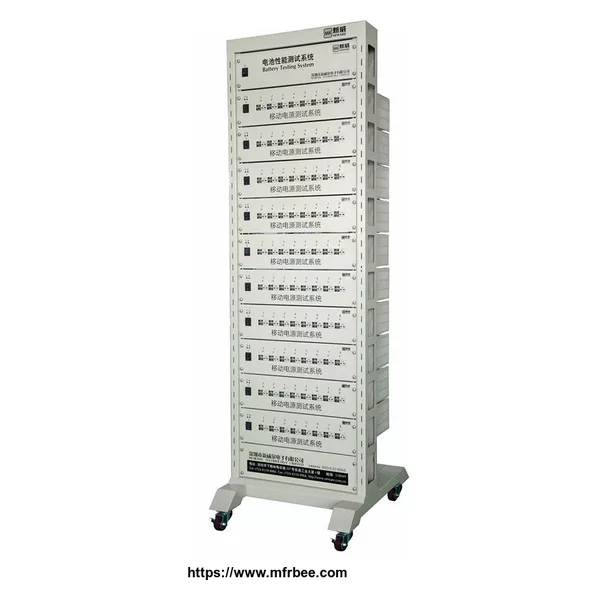

BTS4000(Power)
A.Background of Neware
NEWARE is a testing solutions provider.Since 1998, NEWARE has been committed to providing world-class battery testing equipment. And these efforts have been rewarded with more than 100,000 sets of testing equipment and over 20,000 customers ranging from battery/capacitor manufacturers, auto makers to R&D institutes. Moreover, we are now strengthening integrated experiences both on data management and testing activities involving with third parties. Through this, we provide you highly automated testing system in manufacturing processes and smart testing center enabling you handle complex tests and data. Reliable and flexible testing solutions are what we do for a sustainable future.
B.Specification of BTS 4000
C. Specification of 6V4A
Equipment Model:BTS-6V4A Mobile Power Tester Equipment Item Code:CT-4008-6V4A Mobile Power Tester
Project index | Parameter index | |
Input Power | AC220V ±10% / 50Hz | |
resolution | AD:16bit;DA:16bit | |
Input Resistance | ≥1MΩ | |
Input Power | 324W | |
Channel Features | Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure | |
Channel Control Mode | Independent Control | |
Voltage | Per Channel Voltage Range | 0.03V~6V; |
Discharge Min Voltage | 2.5V | |
Accuracy | ± 0.05% ofFS | |
Stability | ± 0.05% ofFS | |
Current | Per Channel Current Range | 0.02A-4A |
Accuracy | ± 0.05% ofFS | |
Stability | ± 0.05% ofFS |
D .Background of BTS 4000
BTS 4000 entered into market in the year of 2008. Now it is one of the most successful and most popular battery testing system in China. Thousands of battery manufacturers, battery research institutes and laboratories use it as their primary testing partner for their various testing activities.
BTS 4000 is based on Neware forth generation testing system, and was introduced into the market in 2008.
BTS-4000 supports EV battery pulse testing, DCIR (direct current internal resistance) testing, Cycle life testing, Rate testing.
BTS-4000 is now widely used by research institutes, colleges, universities and EV battery manufacturers all around the world.
