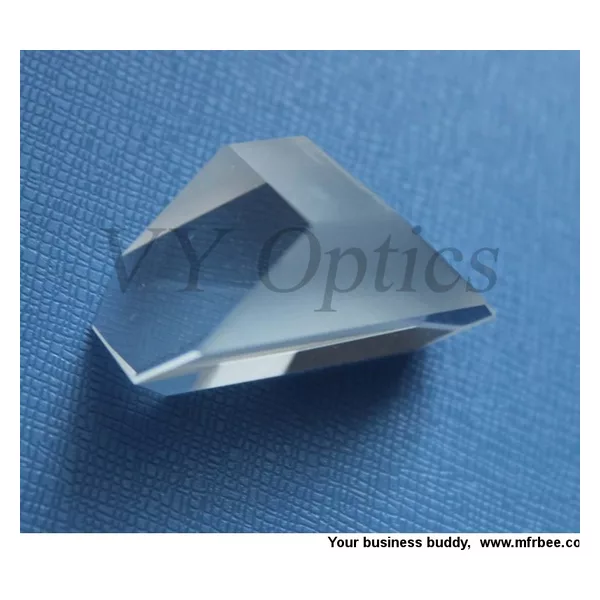

optical amici prism/roof prism for optical instrument

Packaging
as requested
Delivery
15 Days
The general tolerance specifications above provide a guideline regarding manufacturing capabilities for optics ranging in size from 3-76.2mm. The manufacturing limits are not absolute;tighter tolerances may be possible. Part specific tolerances may vary depending on component size, shape, and/or material.
Specification of our amici prism as follow:
*Material BK7 or UV grade fused silica
*Dimension Tolerances +/-0.1mm
*Clear Aperture >80%
*Surface Quality:60/40 Scratch/Dig
*Surface Flatness lambda/4 at 633nm
*Angle Tolerance 60 degree+/-3 minutes
*Chamfer 0.3mm+/-0.1mm m
*Coatings Optional
  • Country: China (Mainland)
  • Business Type:
  • Market:
  • Founded Year:2010
  • Address:No.128 Taibei Street ,Kuancheng Area,Changchun130052
  • Contact:vyoptics427
*Your name:
*Your Email:
*To:VY Optics Photoelectric Technology Co.,Ltd
*Subject:
*Message:
Enter between 20 to 3,000 characters. English only.     Characters : 0 / 3000
*Enter the secure code shown below Mfrbee security Image      Reload Image

submiting now We do inquire for you , please wait ...

optical amici roof prism
optical amici roof prism

Amici prism also named as right angle roof prism, instead of the inclined surface with two mutually perpendicular reflecting surfaces of a rectangular prism. Role roof surface is increased without changing the optical axis direction of the first reflection, so that the total ...
