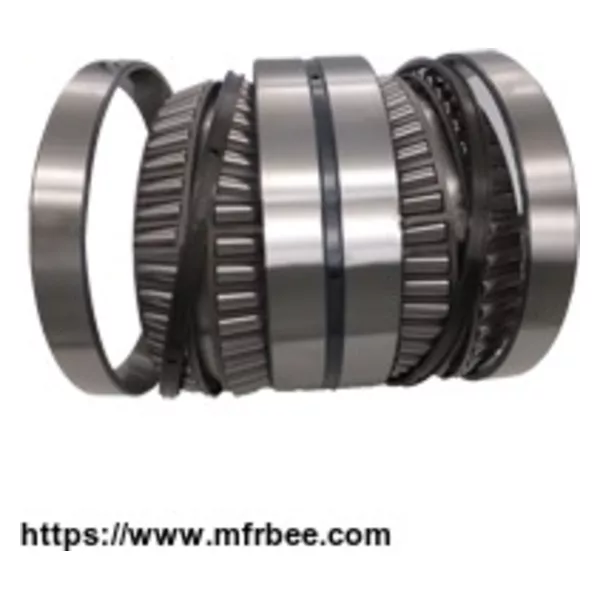

Four Row Tapered Roller Bearing 382968
Inner Ring: 340.00mm
Outer Ring: 460.00mm
Width: 310.00mm
Chamfer: 4mm
Basic Dynamic Load Rating: 2100KN
Basic Static Load Rating: 8140KN
Limited Speed (rpm): 367(grease)/482(oil)
Gross Weight: 147kg
The performance of four row tapered roller bearings or multi row tapered roller bearing are almost the same as double row tapered roller bearings, but their radial and axial loading capacity are much
higher, can carry heavy axial loads in two directions. However, the limiting speed of four-row tapered roller bearing is lower. Usually used as rolling mill bearings, mainly used by heavy engine
machines, such as, in a rolling mill, mining, metallurgy, plastics machinery, large cold and other heavy machinery. CJB can provide customers other tapered roller bearings with special structures,
such as sealed tapered roller bearings, etc.
382930: 150mm*210mm*165mm
382034: 170mm*260mm*230mm
382044: 220mm*340mm*305mm
382048: 240mm*360mm*310mm
E625948: 240mm*338mm*248mm
382952: 260mm*360mm*265mm
382052: 260mm*400mm*245mm
381156: 280mm*460mm*324mm
382960: 300mm*420mm*300mm
382060: 300mm*460mm*390mm
381130: 300mm*500mm*370mm
382064X2: 320mm*480mm*380mm
382968: 340mm*460mm*310mm
381068: 340mm*520mm*325mm
381168: 340mm*560mm*425mm
381072: 360mm*540mm*325mm
381172: 360mm*600mm*420mm
381176: 380mm*620mm*420mm
381080: 400mm*600mm*356mm
381184: 420mm*700mm*480mm
381088: 440mm*650mm*376mm
381992: 460mm*620mm*310mm
381092: 460mm*680mm*410mm
381996: 480mm*650mm*338mm
381096: 480mm*700mm*420mm
3810/500: 500mm*720mm*420mm
3810/530: 530mm*780mm*450mm
3819/560: 560mm*750mm*368mm
3811/560: 560mm*920mm*620mm
3819/600: 600mm*800mm*380mm
3810/600: 600mm*870mm*480mm
3811/800: 600mm*980mm*650mm
3819/630: 630mm*850mm*418mm
3810/630: 630mm*920mm*515mm
3811/630: 630mm*1030mm*670mm
3819/670: 670mm*900mm*412mm
