Rolling Mill Bearing FCD6492240/804571/BC4B 322216/VJ202
Product Quick Detail
- Minimum Order
- 4
- FOB Price
- USD $2,799.00 / Piece
- Place Of Origin
- China
- Packaging
- 1pcs each Wooden Cartion
- Delivery
- 30 Days
Specifications

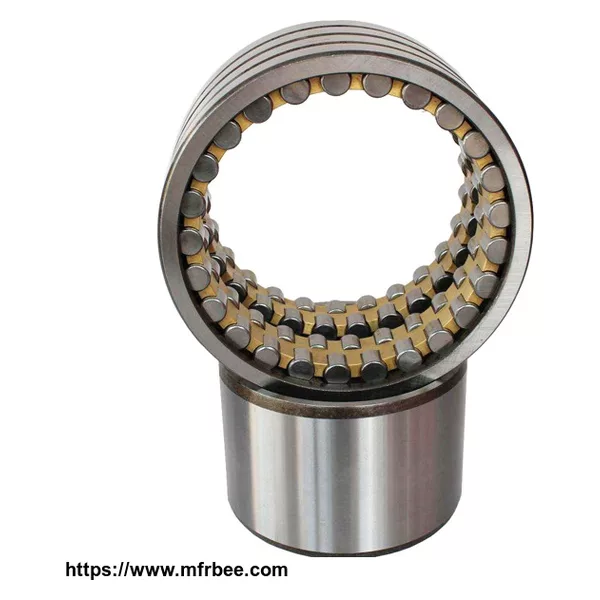

Four Row Cylindrical Roller Bearing Rolling Mill Bearing FCD6492240/804571/BC4B 322216/VJ202
Inner Ring: 320.000mm
Outer Ring: 460.000mm
Width: 240.000mm
Chamfer: 3mm
Outer diameter of Inner Ring:364.00mm
Basic Dynamic Load Rating: 3370KN
Basic Static Load Rating: 7550KN
Gross Weight: 141kg
Material: Carburizing Steel
Brass Cage
Four row cylindrical roller bearings as rolling mill bearings are mainly used on rolling mill stands, calenders and roller presses. The four rows of rollers lends itself to carry large radial loads, but no thrust capacity, for the given bearing cross section. Four row cylindrical roller bearings are separable, the rings and rolling elements could be separated, it is convenient to wash, check, mount and dismount. Four-row cylindrical roller bearing can only bear radial load; therefore, they must be installed with groove ball bearings or angular contact ball bearings, it will be the latter which bear the axial load. our row cylindrical roller bearings are classified into FC, FCD, FCDP types.
Type FC four row cylindrical roller bearing consists of two outer rings and one inner ring, which have two ribs on outer rings, a center rib in the middle, and the inner ring without rib.
Essentially, type FCD four row cylindrical roller bearing is formed by two type NN type of double row cylindrical roller bearings, so it has double outer rings, double inner rings, and the inner ring without rib.
Type FCDP four row cylindrical roller bearing consists of two outer rings and two inner rings, which have two ribs on outer rings.
Type FC, FCD and FCDP four row cylindrical roller bearings permit axial displacement in double directions of the housing relative to the shaft. Therefore, they are suitable to be used as non-locating bearings. Normally, their cages are made from solid machinery.
I.D Size range: above 150mm
FC3045120: 150mm*225mm*120mm
FC3045120: 150mm*225mm*120mm
FC3248168: 160mm*240mm*168mm
FC3652168: 180mm*260mm*168mm
FC3656180: 180mm*280mm*180mm
FC3852168E: 190mm*260mm*168mm
FC4058192: 200mm*290mm*192mm
FC4462192: 220mm*310mm*192mm
FC4666206: 230mm*330mm*236mm
FC4668260: 230mm*340mm*260mm
FC4866220: 240mm*330mm*220mm
FC4872220: 240mm*360mm*220mm
FC5275500YA3B2: 260mm*360mm*200mm
FC5274220: 260mm*370mm*220mm
FC5276280: 260mm*380mm*280mm
FC5476230: 270mm*380mm*230mm
FC5678220: 280mm*390mm*220mm
FCDP5678275: 280mm*390mm*275mm
FC5882240: 290mm*410mm*240mm
FC6084240: 300mm*420mm*240mm
FCD6084300: 300mm*420mm*300mm
FCD6084300A: 300mm*420mm*300mm
FC6896280: 340mm*480mm*280mm
FCDP96130450: 480mm*650mm*450mm
FCD96136500: 480mm*680mm*500mm
Inner Ring: 320.000mm
Outer Ring: 460.000mm
Width: 240.000mm
Chamfer: 3mm
Outer diameter of Inner Ring:364.00mm
Basic Dynamic Load Rating: 3370KN
Basic Static Load Rating: 7550KN
Gross Weight: 141kg
Material: Carburizing Steel
Brass Cage
Four row cylindrical roller bearings as rolling mill bearings are mainly used on rolling mill stands, calenders and roller presses. The four rows of rollers lends itself to carry large radial loads, but no thrust capacity, for the given bearing cross section. Four row cylindrical roller bearings are separable, the rings and rolling elements could be separated, it is convenient to wash, check, mount and dismount. Four-row cylindrical roller bearing can only bear radial load; therefore, they must be installed with groove ball bearings or angular contact ball bearings, it will be the latter which bear the axial load. our row cylindrical roller bearings are classified into FC, FCD, FCDP types.
Type FC four row cylindrical roller bearing consists of two outer rings and one inner ring, which have two ribs on outer rings, a center rib in the middle, and the inner ring without rib.
Essentially, type FCD four row cylindrical roller bearing is formed by two type NN type of double row cylindrical roller bearings, so it has double outer rings, double inner rings, and the inner ring without rib.
Type FCDP four row cylindrical roller bearing consists of two outer rings and two inner rings, which have two ribs on outer rings.
Type FC, FCD and FCDP four row cylindrical roller bearings permit axial displacement in double directions of the housing relative to the shaft. Therefore, they are suitable to be used as non-locating bearings. Normally, their cages are made from solid machinery.
I.D Size range: above 150mm
FC3045120: 150mm*225mm*120mm
FC3045120: 150mm*225mm*120mm
FC3248168: 160mm*240mm*168mm
FC3652168: 180mm*260mm*168mm
FC3656180: 180mm*280mm*180mm
FC3852168E: 190mm*260mm*168mm
FC4058192: 200mm*290mm*192mm
FC4462192: 220mm*310mm*192mm
FC4666206: 230mm*330mm*236mm
FC4668260: 230mm*340mm*260mm
FC4866220: 240mm*330mm*220mm
FC4872220: 240mm*360mm*220mm
FC5275500YA3B2: 260mm*360mm*200mm
FC5274220: 260mm*370mm*220mm
FC5276280: 260mm*380mm*280mm
FC5476230: 270mm*380mm*230mm
FC5678220: 280mm*390mm*220mm
FCDP5678275: 280mm*390mm*275mm
FC5882240: 290mm*410mm*240mm
FC6084240: 300mm*420mm*240mm
FCD6084300: 300mm*420mm*300mm
FCD6084300A: 300mm*420mm*300mm
FC6896280: 340mm*480mm*280mm
FCDP96130450: 480mm*650mm*450mm
FCD96136500: 480mm*680mm*500mm
