High reliability | |
Maximum input transient voltage:80V/50ms or 8V/50ms | |
Output power PO:140W | |
Operating temperature range :Tc:-55℃~+125℃ | |
Efficiency:95% | Size:36.83×28.44×8.40mm(Without flange) 50.80×28.44×8.40mm(With flange) |
Match with DC/DC converter with Input voltage range of 16-40V | Weight:31g(Without flange) 34g(With flange) |
Hermetically sealed metal cases |
2 Scope of application of HSFM140 Series Transient Suppression DC/ DC Converters
High-reliability electronic system for aviation and aerospace, etc.

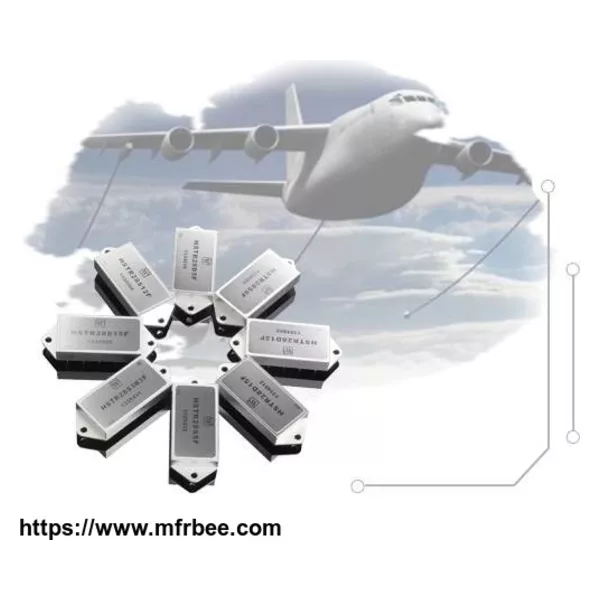

3 Description of HSFM140 Series Transient Suppression DC/ DC Converters
HSFM-140 surge protection front-end module is matched with DC/DC converter.
It is used to treat the Instantaneous input voltage(80V/50ms,8V/50ms),after processing , it provides a reliable input voltage for DC/DC converter. The module is made of thick-film hybrid integrated process, bare chip assembly and full metal case sealed package.
Two operating modes for HSFM-140 surge protection front-end module:
Normal operating mode:When the bus voltage at 16V~40V,the module output voltage follows the input voltage and lower than the input voltage of about △V, while the internal DC/DC converter charge the external capacitor.
Surge maintenance mode::When the bus voltage reaches 80V/50ms or 8V/50ms,
The output part of the modules will be switched back .The external capacitor discharged to supply power for thehigh voltage dc dc converter1 Features of HSTR28D Series Transient Suppression DC/ DC Converters High reliability Wide input voltage range:15V~50V,Nominal DC input voltage: 28V Surge protection voltage:80V,1s Output Power PO:40W Operating temperature range Tc:-55℃~+125℃ Dimensions: ...
1 Features of HSTR28S Series Transient Suppression DC/ DC Converters High reliability Wide input voltage range:15V~50V,Nominal DC input voltage: 28V Surge protection voltage:80V,1s Output Power PO:40W Operating temperature range Tc:-55℃~+125℃ Dimensions: ...
