MNSX0501S Point of Load DC/DC Converters (POL)

1 Features of MNSX0501S Point of Load DC/DC Converters (POL)

Input DC Voltage range(Continuous)：7～25V
Typical input DC voltage：16V
Output voltage：-5V
Output power：5W	25×22.86×7.87mm3

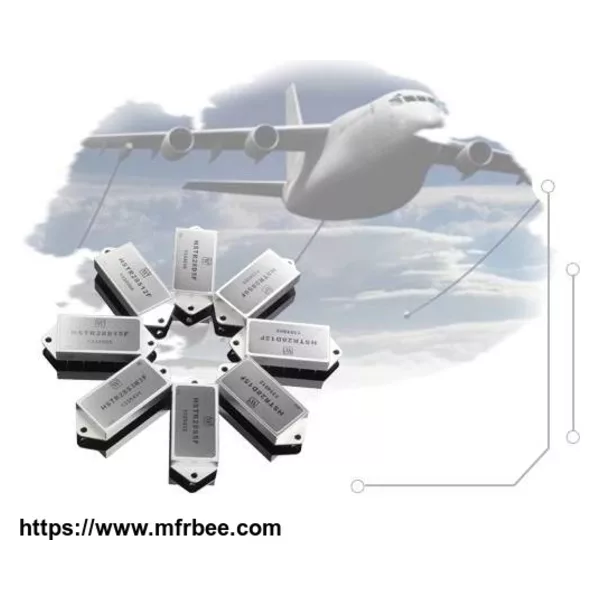

Temperature（Tc）：-40～85℃	Fig 1 Product type
BUCK topological structure, PWM Control	MNSX0501S

2 Scope of application of MNSX0501S Point of Load DC/DC Converters (POL)

MNSX0501Sspace dc dc converteris used in aerospace and high reliable electronic system.

3 Descriptions of MNSX0501S Point of Load DC/DC Converters (POL)

MNSX0501S DC/DC Converter use BUCK topological structure. Circuit contains input filter, PWM control, and reactive circuit and so on. Circuit also has protected function for over-current and under-voltage to improve the reliability of product.

This product is modular circuit structure; it’s used by PCB surface assembly process, no embedment, package is used by 2014 mucilage glue, gushing three proofing, and copper shell.
