MNSX12N0R4S Point of Load DC/DC Converters (POL)

1 Features of MNSX12N0R4S Point of Load DC/DC Converters (POL)

Input DC Voltage range(Continuous)：7～18V
Typical input DC voltage：12V
Output voltage：-12V
Output power：4.8W	25×22.86×7.87mm3

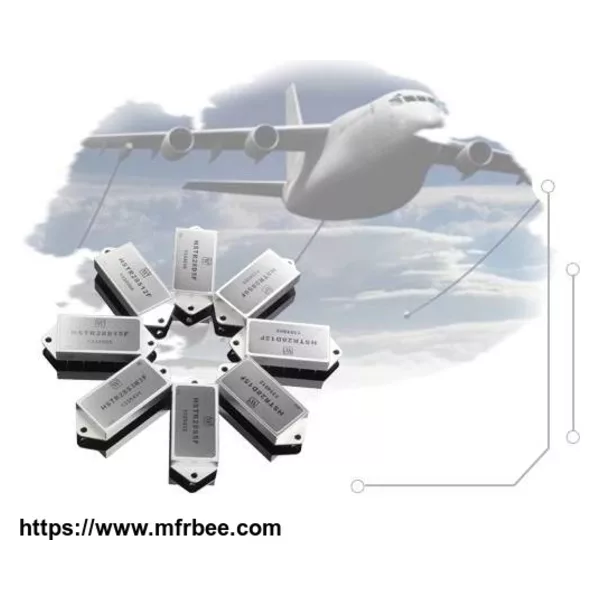

Temperature（Tc）：-40～85℃	Fig 1 Product type
BOOST topological structure, PWM Control	MNSX12N0R4S

2 Scope of application of MNSX12N0R4S Point of Load DC/DC Converters (POL)

MNSX12N0R4S DC/DC Converter is used in aerospace high reliable electronic system.

3 Descriptions of MNSX12N0R4S Point of Load DC/DC Converters (POL)

MNSX12N0R4Shigh efficiency DC/DC Converteruses BUCK-BOOST topological structure. Circuit contains input filter, PWM control, and reactive circuit and so on. Circuit also has protected function for over-current and under-voltage to improve the reliability.

This product is modular circuit structure; it’s used by PCB surface assembly process, no embedment, package is used by 2014 mucilage glue, gushing three proofing, and copper shell.
