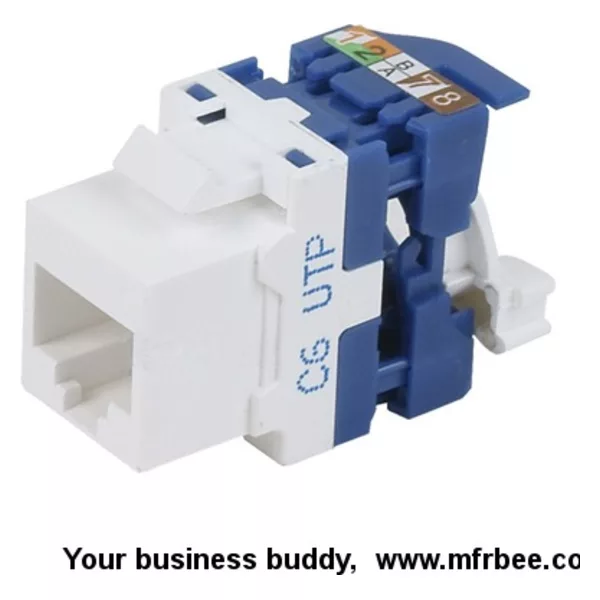

QICC-121 New Style Cat5e/C6 Toolless Keystone Jack
Product Quick Detail
- Packaging
- 1pcs/bag
- Delivery
- 15 Days
Specifications
Housing material: PC UL94v-0
Insert material: Flame retardancy ABS UL94v-0
PCB material: Fr-4 thickness: 1.6mm
Contact material: Phosphor bronze stamp pin t=0.35mm
IDC contact material: Phosphor bronze t=0.50mm with nickel plating
Wire: Awg 24-26
Storage: -40° To +85°
Operation: 0° To 70°
Available in Cat5e, T568A, T568B wiring. meeting every cabling requirement
Mates with modular plug conforming to FCC part 68, subpart f.
Voltage rating: 125 vac RMS
Current rating: 1.5 amp
Contact resistance: 100 milliohms max
Insulation resistance: 1000 megohms min 500 vdc
Dielectric strength: 750 vac RMS 60Hz, 1min
Insert material: Flame retardancy ABS UL94v-0
PCB material: Fr-4 thickness: 1.6mm
Contact material: Phosphor bronze stamp pin t=0.35mm
IDC contact material: Phosphor bronze t=0.50mm with nickel plating
Wire: Awg 24-26
Storage: -40° To +85°
Operation: 0° To 70°
Available in Cat5e, T568A, T568B wiring. meeting every cabling requirement
Mates with modular plug conforming to FCC part 68, subpart f.
Voltage rating: 125 vac RMS
Current rating: 1.5 amp
Contact resistance: 100 milliohms max
Insulation resistance: 1000 megohms min 500 vdc
Dielectric strength: 750 vac RMS 60Hz, 1min
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Americas,Middle East,Europe,Oceania
- Founded Year:2007
- Address:No.77 Binhai 2 Road, Hangzhou Bay Economic Development Zone, Ningbo City, Zhejiang Province, China
- Contact:Ben zhu
