Taber oscillation and wear instrument
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- china
- Packaging
- Packed by solid wooden case;
- Delivery
- 30 DAYS
Specifications

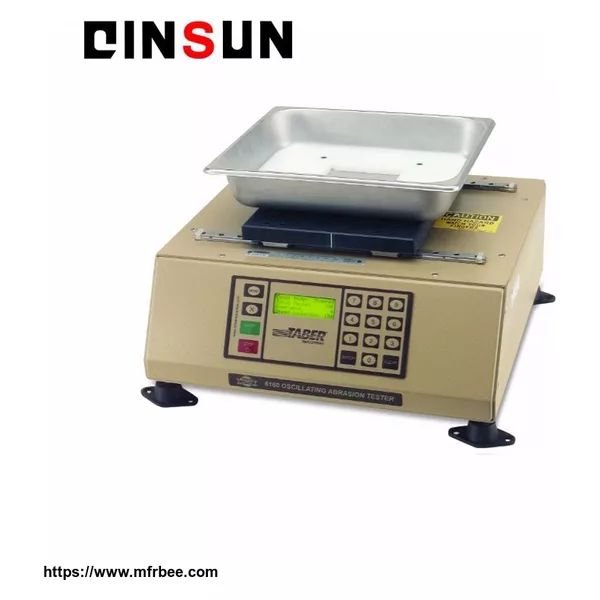

Taber oscillation and wear instrumentis used to test the transparency of materials and coatings on glass, lenses, and to evaluate the abrasion resistance of organic coatings, plastics, metals and other materials.
Standards compliant:ASTM F735, ARCA AR-C STP 5.2.5 (Bayer Wear Test)
Taber oscillation and wear instrumentTechnical Parameters:
Taber oscillation and wear instrumentis also commonly referred to as "sand oscillator".It is primarily used to test the properties of transparent materials and coatings coated on glass and lenses, and it can also be used to evaluate the abrasion resistance of organic coatings, plastics, metals and other materials
The sample is fixed in the fixed fixture at the bottom of the sand table and the surface of the sample is exposed to a height of no more than 1 mm.Place a uniform depth of standard abrasive media such as quartz sand or alumina in the sand table
The sandbox is moved back and forth in a specific drive drive to drive the abrasive media in the entire sand table.This random scratches of the media can be used to simulate the wear and tear of the product in daily life
In addition, Taber oscillatory wear instrument also allows users to use liquid grinding slurry for wear and corrosion testing.Buy the relevant accessories, the user can also lens "Bayer test".The purpose is primarily for comparison with the reference lens
The test parameters of the Taber Oscillation Meter can be adjusted so that the user can choose the length of the back and forth (0.25 to 6 inches) and the speed (100-200 rounds per minute).In addition, the oscillating mill allows the user to use different types of abrasive media including quartz sand, alumina, emery and glass beads for testing
Taber oscillation and wear instrumentbasic operation:
1. The sample is fixed in the fixed fixture at the bottom of the sand table, the sample surface exposed height of not more than 1mm;
2. Put a uniform depth of standard abrasive media such as quartz sand or alumina in the sand table;
3. Sand table in a specific drive driven before and after the reciprocating movement, thus driving the entire sand table in the wear medium movement;
4. This random scrape pattern of the wear medium simulates the wear and tear of the product in daily life.
Taber 6100 oscillation wear instrument / 6100 oscillation wear tester test method:
1. Allows the user to use a liquid abrasive slurry for wear and tear testing.Buy the relevant accessories, the user can also lens "Bayer test".The purpose is primarily for comparison with the reference lens.
2. The instrument's test parameters can be adjusted so that the user can choose the length of the back and forth (1,2,3 or 4 inches) and speed (100-200 rounds per minute).In addition, the oscillating mill allows the user to test different types of abrasive media including quartz sand, alumina, emery and glass beads.
Standards compliant:ASTM F735, ARCA AR-C STP 5.2.5 (Bayer Wear Test)
Taber oscillation and wear instrumentis also commonly referred to as "sand oscillator".It is primarily used to test the properties of transparent materials and coatings coated on glass and lenses, and it can also be used to evaluate the abrasion resistance of organic coatings, plastics, metals and other materials
The sample is fixed in the fixed fixture at the bottom of the sand table and the surface of the sample is exposed to a height of no more than 1 mm.Place a uniform depth of standard abrasive media such as quartz sand or alumina in the sand table
The sandbox is moved back and forth in a specific drive drive to drive the abrasive media in the entire sand table.This random scratches of the media can be used to simulate the wear and tear of the product in daily life
In addition, Taber oscillatory wear instrument also allows users to use liquid grinding slurry for wear and corrosion testing.Buy the relevant accessories, the user can also lens "Bayer test".The purpose is primarily for comparison with the reference lens
The test parameters of the Taber Oscillation Meter can be adjusted so that the user can choose the length of the back and forth (0.25 to 6 inches) and the speed (100-200 rounds per minute).In addition, the oscillating mill allows the user to use different types of abrasive media including quartz sand, alumina, emery and glass beads for testing
Taber oscillation and wear instrumentbasic operation:
1. The sample is fixed in the fixed fixture at the bottom of the sand table, the sample surface exposed height of not more than 1mm;
2. Put a uniform depth of standard abrasive media such as quartz sand or alumina in the sand table;
3. Sand table in a specific drive driven before and after the reciprocating movement, thus driving the entire sand table in the wear medium movement;
4. This random scrape pattern of the wear medium simulates the wear and tear of the product in daily life.
Taber 6100 oscillation wear instrument / 6100 oscillation wear tester test method:
1. Allows the user to use a liquid abrasive slurry for wear and tear testing.Buy the relevant accessories, the user can also lens "Bayer test".The purpose is primarily for comparison with the reference lens.
2. The instrument's test parameters can be adjusted so that the user can choose the length of the back and forth (1,2,3 or 4 inches) and speed (100-200 rounds per minute).In addition, the oscillating mill allows the user to test different types of abrasive media including quartz sand, alumina, emery and glass beads.
