Horizontal Flammability Tester

Place Of Origin: china

Minimum Order: 1

Packaging: Packed by solid wooden case;

Delivery: 15 Days

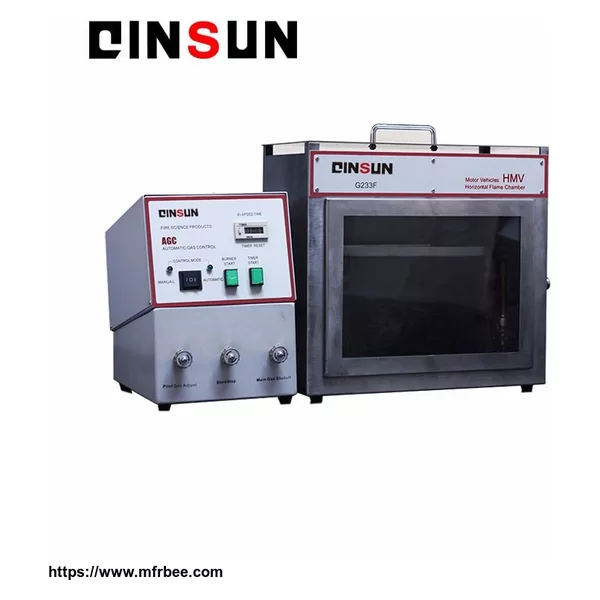

Horizontal Flammability Tester

Standards:

ISO 3795, FMVSS 302, DIN 75200, SAE J369, ASTM D5132, JIS D1201, AU 169

Applications:

The Horizontal Flammability Tester is designed for determining the comparative burn rates and burn resistance of textiles, particularly those for automotive interior use.

Features:

Horizontal Flammability Tester can detect the relative burning rate and flame retardancy of textiles, especially automotive interior fabrics. The instrument is equipped with a seal Rust steel combustion chamber, observation window, sample holder and door burner. Automatic gas control system, including electromagnetic control gas valve, automatic ignition timer and control

Technical Description:

A.Comprises draft free stainless steel cabinet with observation window, stainless steel (#316) with stands high temperature and high pressure.

B.Impending tympanic membrane structure provided with steel springs and damping system, which makes the operation stable.

C.Designed with sample holder and door mounted burner.

D.Basic mode with manual control of timing.

E.Sample holder can be moving vertically and horizontally.

F.Optional Automatic Gas Control System including solenoid control gas value and automatic ignition timer and controls.

Configurations:

A.Automatic Gas Control System,1 set.

B.DIN 75200 (automotive trim materials) testing accessory

Including burner ×1, burning nozzle ×2.

C.SAE J369 (polymer interior materials) testing accessory

Including burner ×1, burning nozzle ×2.

D.ASTM D5132 (motor vehicle polymer interior materials) testing accessory

Including burner ×1, burning nozzle ×2.

E.Other testing standards

Including burner ×1, burning nozzle ×2.
