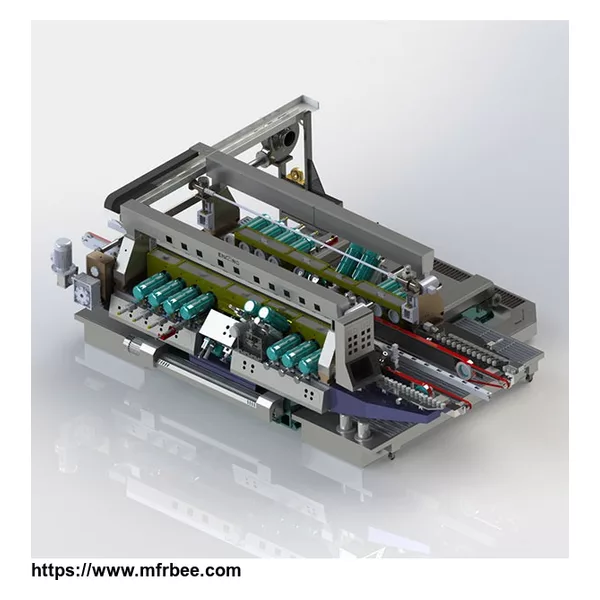

SM 20 GLASS STRAIGHT-LINE DOUBLE EDGING MACHINE

Technical Date

• Number of Spindles: 20 (optional: 22 spindles with Low E deletion device, Extra-polish, Servo tracking Safety Corner Cutting)
• Max. glass dimension: Up to 4200
• Min. glass size: 300x300 (optional: 250x250)
• Glass thickness: 3~25 mm
• Working Speed: 0.5-12 8m/mins
• Width adjustment Speed: 2m/mins (optional:8m/mins)
• Max. edge grinding: 1~3 mm
• Tolerance of the diagonal(1000x1000): ±0.5mm
• Tolerance on the parallelism(mm): ±0.3mm
• Total power: 68 KW
