Core-alignment fusion splicer

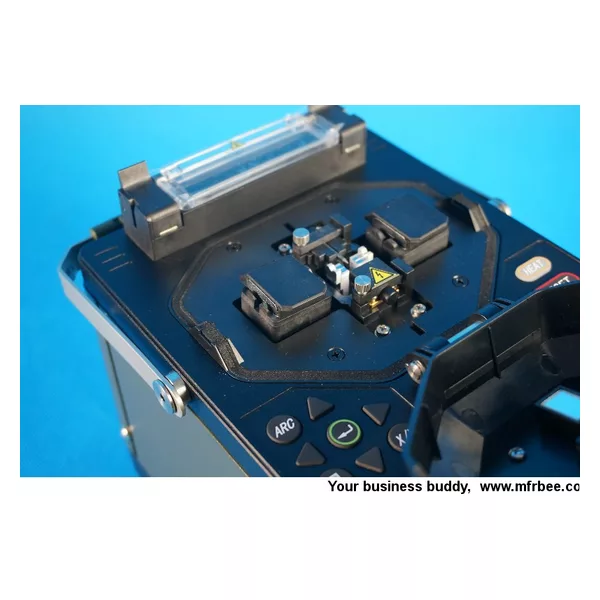

JX9010A is an optical fiber fusion splicer with a brand new design. With powerful functions and super low splicing loss, it is highly competent for construction of trunk lines and FTTx. Lightweight and compact, it is easy to use even in confined space. The novel fiber imaging system makes the image clearer. The real-time embeded Operating System provides a friendly man-machine interface and abundant functions. The built-in large capacity Li-Ion battery can support long-time field work. The real-time compensation system for temperature, humidity and air pressure has greatly enhanced the device against unfavorable environment changes and thus guarantees its consistency of low loss splicing in various environments.

Technical Highlights:
HD Optical Image Acquisition System
ο HD aligner for double separate optical fibers
ο High performance CMOS sensor
ο Sensor pixels 640*480
Len Imaging Optical Fiber Aligning System
ο Fast evaluation of fiber profile
ο Precise fiber alignment
ο Precise evaluation of splicing loss
Real-time Discharging Correction System
ο High performance discharging electrode
ο AC-DC mix discharging technique
ο Current feedback and environment compensation
Typical Application:
JX9010A Fiber fusion Splicer is mainly applied in fiber cable construction, fiber line maintenance, emergency repair of fiber cables and tests and production of optical fiber components
