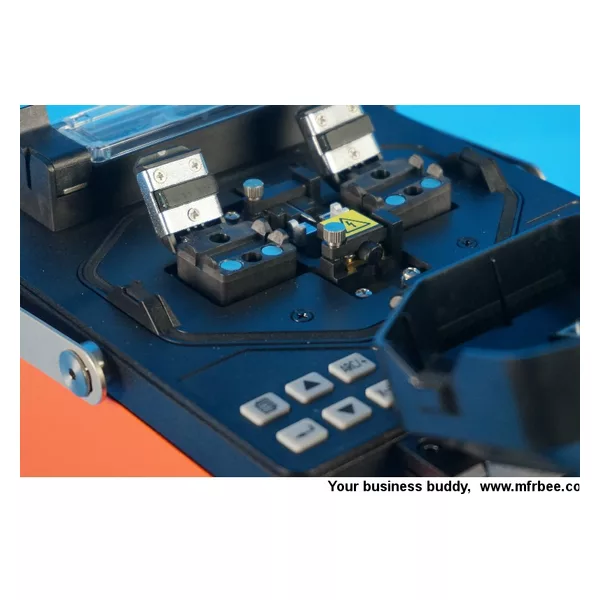

Fiber fusion splicer

JX9010 is a new designed fiber splicing equipment.The powerful funtcion and super low splicing loss make it be competent for construction of trunk line and FTTX :Because of the compact configuration and precise mechanism,it can adapt to execrable enviroment; The novel fiber imaging system make the image clearer and exquisiter;The real-time embeded OS provide friendly man-machine interface and abundant functions. The bulit-in large capacity Li-Ion battery can support long-time fieldwork.The embeded sensors measured temperature, humidity and air pressure supply closed-loop feedback control ,so the instrument can adopt all kinds atrocious circumstance and the consistency of splicing loss was improved.

Main Features：

New fully-digitalized design;

Small volume,light weight,only 2.8kg include battery;

8 seconds splicing,25 seconds Heat-Shrinking;

Close shield splice automatically;Close heater,heat automatically;

X/Y axes were displayed meanwhile, Magnification upto 304 times;

Real time calibrating system for discharging,parameter needn’t be adjusted;

Long Electrode Lifetime,upto 4000 times;

USB andVGA ports;

5.7 inch digital high distinguish LCD;

Battery capacity was display in real time. Precisely;

Bulit-in high capacity battery,220 times splicing and heating can be accomplished easily;

Typical Application：

JX9010 Fiber Splicer mainly applied to fiber cable construction, fiber line maintenance, rush repair fiber cable and fiber device produce test.
