Crowd Control Barrier is Flexible and Diverse

Crowd control barrier is a type of temporary fencing for designated events, which can provide security for patrons and the general public. Crowd control barricade panels interlock one another with hook and loop. The barricade fence panel can stand on the floor with three kinds of feet: flat feet, crossed feet and removable bridge feet. All these feet are convenient and environmentally friendly, because they can be installed well without drilling or digging holes.

Features:

• Good strength and stable.
• Easy to install and dismantle. Require no drilling or digging.
• Reusable and long service time.
• More practical and efficient.
• Rent and purchase are all available.
• Have different types, sizes and colors.
• The barrier fence length is flexible for different sites.

Specifications:
Our crowd control barriers have many types and sizes for different sites.

• Material: Low carbon steel.
• Surface treatment: Hot-dipped galvanized after welding or powder coating, PVC coated, etc.
• Zinc standard: 42 microns, 300 g/m2.
• Panel sizes:
  • Length: 2000 mm, 2015 mm, 2200 mm, 2400 mm, 2500 mm.
  • Height: 1100 mm, 1150 mm, 1200 mm, 1500 mm.
• Frame pipe:
  • Diameter: 20 mm, 25 mm (popular), 32 mm, 40 mm, 42 mm, 48 mm.
  • Thickness: 0.7 mm, 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm, 2.5 mm.
• Infilled pipe:
  • Diameter: 14 mm, 16 mm, 20 mm (popular), 25 mm.
  • Thickness: 1 mm.
• Spacing: 60 mm, 100 mm, 190 mm (popular), 200 mm.
• Feet:
  • Flat metal feet, 600 mm × 60 mm × 6 mm.
  • Cross feet outside diameter: 35 mm.
  • Bridge feet: 26".

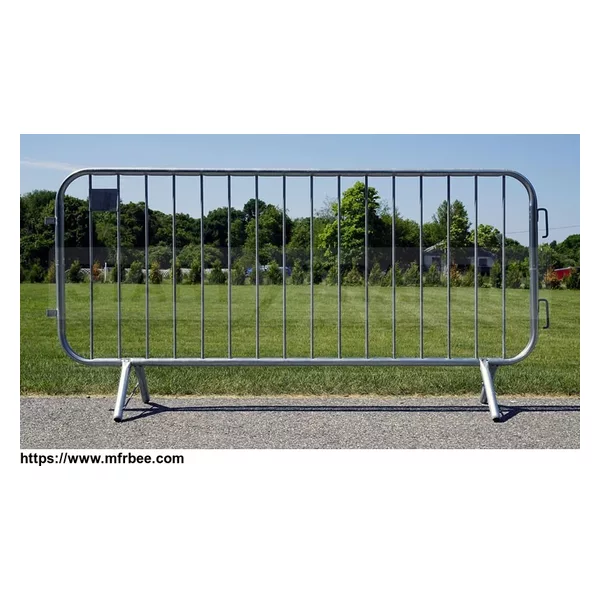

CCB-1: Crowd control barrier with flat metal feet.

CCB-2: Crowd control barrier with crossed feet.

CCB-3: Crowd control barrier with bridge feet.

CCB-4: Crowd control barrier with bridge feet and wheels.

Applications:
With so many benefits, the crowd control barrier can be used in various occasions to provide security for people.

• Create a special space in public events for security, such as outdoor festivals, concerts, sports events and so on.
• Help people escape smoothly in some emergency situations.
• Serving as bike barricade at the roadside.
• Safety signage for some dangerous places.
• Security barrier at the construction sites.
• As the aisle barrier of the exit in park, station and other public places.
• Temporary isolation or separation in some places, like parking lot, exhibition and so on.

CCB-5: Crowd control barriers can be used for public events to keep order.

CCB-6: Crowd control barriers can be used as a warning signage with obvious colors.
