Corral Panels have Square, Round and Oval Type Tube

Corral panels, also called cattle panels, livestock panels, corral fence panels, are a kind of welded steel tube fence for cattle, horse and other livestock. It is made of high quality low carbon steel, so it has a good strength. We can provide different types corral panels and corral panel gate for you. Corral panels consists of round tube corral panels, square tube corral panels and oval tube corral panels. The quantity of the tubes can also be different. Main markets of our corral panels are Australia, European countries, Canada, America and Asia countries.

Features:

• The fence panel is made of steel, so the panel can stand against fierce strike of the cattle and horse.
• It is durable and has good corrosion resistance with galvanized or PVC coating surface.
• The panel is light, so it is easy to transport.
• The panel is easy to install without digging holes on the ground.
• The lugs are welded for all four sides, so it is very durable and safe.
• The panels with welded top caps will be waterproof and dust proof.

COP-1: Corral panels fixed by pins and lugs are stable.

Specifications:

• Material: low carbon steel.
• Surface treatment: hot-dipped galvanized, PVC coated.
• Zinc coating: more than 15 microns.
• Color: green, yellow, black or as your request.
• Accessories: 1 set need 2 rain caps, 2 "U" lugs, 2"L"lugs, 2 pins and 2 footplate.

COP-2: Round tube type corral panels are stable with solid welded points.

Round tube type specification

Size	Height: 1.6 m, 1.8 m, etc. Length: 2.07 m, 2.09 m, 2.1 m, etc.
Vertical frame	OD: 32 mm, 42 mm. Thickness: 1.6 mm.
Horizontal tube size	OD: 32 mm, 42 mm. Thickness: 1.6 mm.
Tube quantity	1.6 m height with 5 tubes, 1.8 m height with 6 tubes.

Customer sizes are also available.

COP-3: Square tube type corral panels.

Square tube type specification

Size	Height: 1.6 m, 1.8 m, etc. Length: 2.07 m, 2.09 m, 2.1 m, etc.
Vertical frame	40 mm × 40 mm RHS, 50 mm × 50 mm RHS. Thickness: 1.6 mm.
Horizontal tube size	40 mm × 40 mm RHS, 50 mm × 50 mm RHS. Thickness: 1.6 mm.
Horizontal tube quantity	1.6 m height with 5 tubes, 1.8 m height with 6 tubes.

Customer sizes are also available.

COP-4: Oval tube type corral panels with no sharp edges can decrease the hurt to the livestock.

Oval tube type specification

Size	Height: 1.6 m, 1.8 m, etc. Length: 2.07 m, 2.09 m, 2.1 m, etc.
Vertical frame	40 mm × 40 mm RHS, 50 mm × 50 mm RHS. Thickness: 1.6 mm.
Horizontal tube size	30 mm × 60 mm oval tube, 40 mm × 80 mm oval tube, 40 mm × 120 mm oval tube. Thickness: 1.6 mm.
Horizontal tube quantity	1.6 m height with 5 tubes, 1.8 m height with 6 tubes.

Customer sizes are also available.

Corral panel gate specification

Customer sizes are also available.

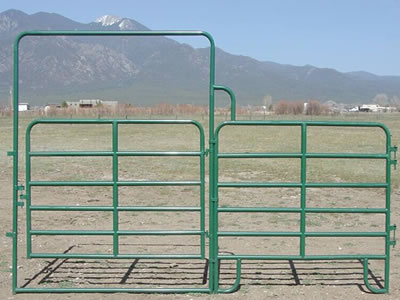

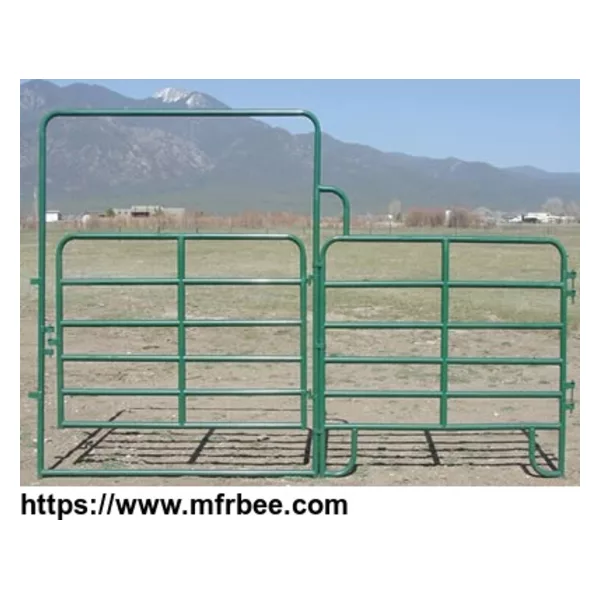

COP-5: Corral fence gate will be stabler by welding with the fence panel .

COP-6: The gate that is installed with the fence panels by clamps will be more flexible.

Applications:
Corral panels can be widely used as the security fence for farm. With good strength, the panel can keep animals safe and protect your farm fields from wild animals attacking.

COP-7: Corral panels can be used to protect horse.

COP-8: Corral panels can be used to separate the livestock and protecting them.

Package:

1. Fence panel can be packaged with plastic film, wooden or metal pallet.
2. The accessories like the pins can be packaged with plastic film and carton box.
3. We can also pack them as your request.
