Lodging Mechanism

Lodging Mechanism

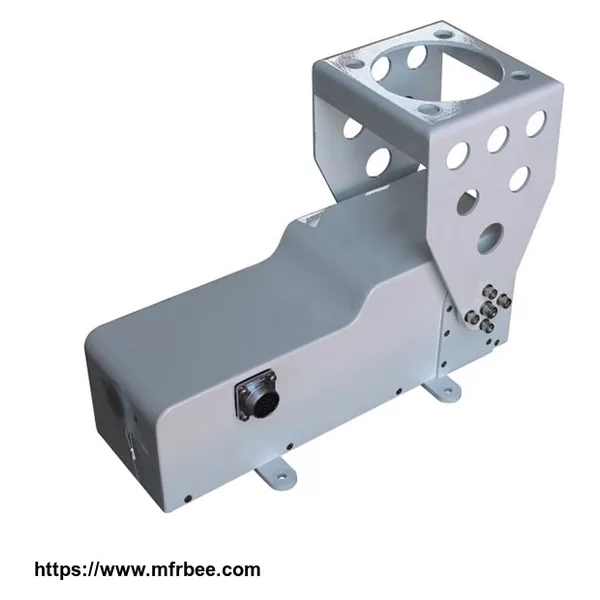

The lodging mechanism developed by my company is applicable to the communication vehicle with antenna over roof. It can control the vehicle antenna to fold and upright easily , helping the vehicle smoothly to go through the restricted road such as culvert, small group of trees, flyovers, or go into the garage, solved the communication interrupt problems led by extra high antenna which will be damaged by bumps and scrapes, improving the vehicle marching speed and operational efficiency of troops greatly.

The mechanisms can be installed outside the roof of the car, control box in cab, easy operated and accurate positioning.

In case the communication vehicle is out of power supply or control box does not work,the mechanism can control the antenna fold inside the vehicle or upright outside easily by a a manual wrench.

Whip antenna lodging mechanism //Technical indicators

1. Working temperature: -40°C to +65°C

2. Working environment: all-weather

3. Working torque: greater than 30N.m

4. Working load: less than 3KG.

5. Power supply voltage: DC24V

6. Maximum current: less than 5A

7. Lodging speed: about 10S

8. Upright angle: 90°C more or less 0.5°C

9. Folding angle: 0°C more or less 0.5°C

10. Weight: less than 10KG

11. Reliability: failure-free more than 10 thousand times averagely.
