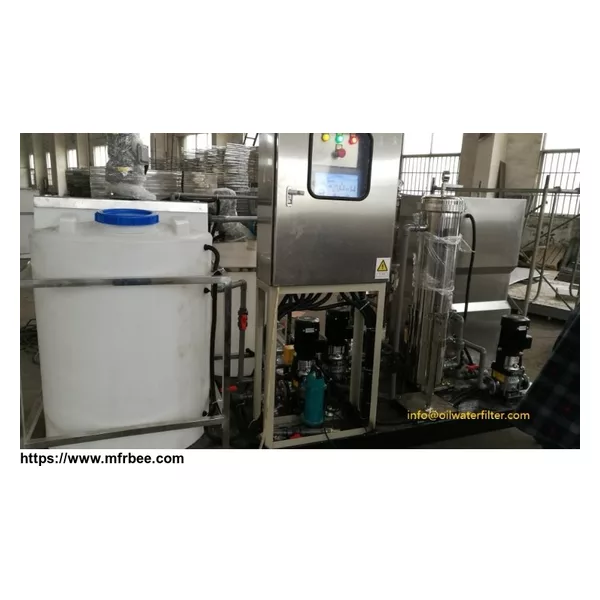

Multi-level Modular Accumulation Induced Oil Water Separator

The Multi-level Modular Accumulation Induced Oil Water Separator consists of electrical and automation control system, mechanical process system, oil water separation material system and equipment self-cleaning system. It employs lower energy consumption and higher efficient physical separation processto separate water, suspended matter and oil orthe liquid that is insoluble in water. After filtration, the water in oil or the oil in water is less than 10 mg/L or 10 ppm, it can also improve the index of solidsuspended matter (SS), chemical oxygen demand(COD), ammonia nitrogen (ANT), total phosphorus (TP) at the same time.

Features

Electrical and automation control system:It can be automatically operating. The operator can adjust flowrate as per the requirements of plant process of end user.

Mechanical process system:It can configure slag removal unit, degumming unit, floating oil removal unit, dispersed oil removal unit or emulsified oil removal unit as per the ingredient of oil water mixture.

Oil water separation material system:It consists ofemulsified oil separation membrane, superhydrophilic and superoleophobic separation membrane, superoleophylic and superhydrophobic separationmembrane,superoleophylic and superhydrophobic light oil sorbent sponge and heavy oil sorbent sponge. These materials are optional as per theingredient of oil water mixture.

Equipment self-cleaning system:It can automatically clean the oil water separator equipment, so it is easy to operate and maintain.

Process Flow

Primary pretreatment system: The dynamic slag removal machine employing the steel wire gauze with more than 100mesh number/165μmis optional as per theingredient of oil water mixture. Ifthe dynamic slag removal machine is not required, buffer pool is optional, so that it has less turbulence influence caused by the inputted oil water mixture.

Three-phase primary separator system: we employ specific process and our oil water separation materials to separate the tiny granules, floating oil and water from oil water mixture. It has the light oil output, heavy oil output and slag output.

Secondary pretreatment system: it adds pressure to or reduces pressure of the oil water mixture outputted from three-phase primary separator system as per the status of separated oil water mixture. It provides the necessary conditions for Three-phase Advanced Separator System.

Three-phase advanced separator system:It further treats the oil water mixture outputted from secondary pretreatment system. It polymerizes the liquid with small molecule by our oil water separator materials and AccumulationInduced effect.It guarantees oil in water or water in oil meets the requirements of end user by the adjustable multi-level filter mode.

Refined treatment:It further treats the oil water mixture outputted from three-phase advanced separator. It is one kind of filter equipment consisting of oil water filter cartridge. It is suitable for the application with higher requirements, for example, the oil in water or the water in oil is less than 5 ppm.

Control panel:It automatically controls Multi-level Modular Accumulation Induced Oil Water Separator and it indicates many important parameters, such as flow, press, level, water content, temperature and alarm. It can remotely monitor and control oil water separator.

Typical Applications

The Multi-level Modular AccumulationInduced Oil Water Separator provides the services for the European, American, Japanese, Chinese and its Taiwanese companies in China. These applications are in oil sewage from city, oil sewage from electronic plant, oil sewage from mechanical manufacturing plant, oil wastewater of alkanes plant, Carbon 9 emulsion, water removal of alkanes reagent, organic wastewater of printing and dyeing plant and so on. The lab from our company and our client do many sample tests, comparison tests and pilot-scale test of oil water mixture.
