Features
- Brand New IP65 waterproof model, pure sine wave output, reverse your power meter cut your bill.
- Work with the solar system, built-in high-performance Maximum Power Point Tracking(MPPT)function, more efficiency.
- Unique circuit design, higher efficiency, more stable.High-frequency isolation transformer, high security.
- Perfect electrical protection function, AC electric power transmission using the reverse transmission technology
- Remarks: LED flashing in the process of being the working condition: inverters connected to AC & DC sides→Red LED light 3s→working condition.
Specification

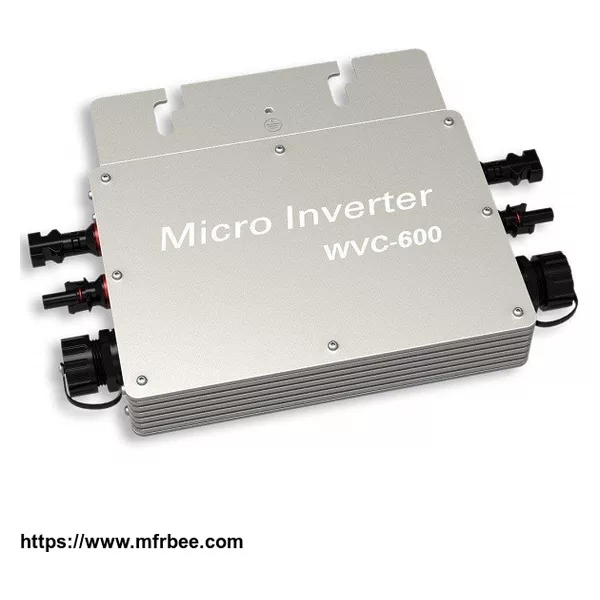

Models: WVC600W 110V
Recommend use PV panels: 600W / Vmp>34V / Voc<50V
DC MAX input: current 40A
AC MAX output: power 600Watt
DC MAX Open-circuit input-voltage: 50VDC
DC input voltage range: 22~50VDC
MAX output power factor: 0.99
DC input Reverse voltage protection: FUSE
AC output voltage range: 80V-160V
AC frequency range: 49.3-50.5 Hz
THDIAC: <5%
AC Phase: <0.5%
Islanding protection: VAC
Output short circuit protection: Current-limiting
Led Display: Refer to “LED Display”
Communication power line carrier-current communication
Standby Power: <1W
Night Power: <1W
Ambient temperature range: -40 ℃~65℃
Humidity: 0~100%
Waterproof class: IP65
Network test: DIN VDE 1026 UL1741
Certificate: CEC
Notes:
- Please connect the inverter following the operation instruction show above. If have any question please contact relative persons.
- Non-professionals do not disassemble. Only qualified personnel may repair this product.
- Please install the inverter in the low humidity and well-ventilated place to avoid the inverter over-heating, and clear around the inflammable and explosive materials.
- When using this product, avoid children touching, playing, to avoid electric shock. Connected solar panels DC input DC power supply cable.
