Description

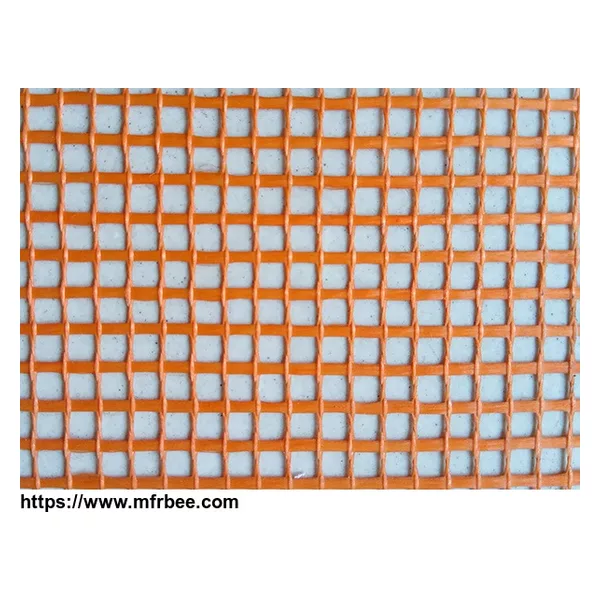

Alkali resistant fiberglass mesh is woven by fiberglass yarn as its basis mesh, and then coated by alkaline resistant latex. It has fine alkaline-resistant, high strength, etc. As an ideal
engineering material in construction, it is mainly used to reinforce cement, stone, wall materials, roofing, and gypsum and so on.
We can produce any size mesh according to requirements of customer like different mesh size and weight per square meter.
We can supply special mesh as following
1.High strength mesh,
2.Fire proof mesh.
3.Strong and flexible mesh
We can supply specifications from 30g/m2 to 500g/m2 for mesh.
Main size: 5mm x 5mm or 4mm x 4mm, 75 g/m2, 90 g/m2, 125 g/m2,145 g/m2, 160 g/m2.
Application
1.Wall reinforced material (such as fiberglass wall mesh, GRC wall panels, EPS insulation with the wall board, gypsum board, bitumen)
2.Reinforced cement products.
3.Used for Granite, mosaic, marble back mesh etc.
4.Waterproof membrane fabric, asphalt roofing.
Example of applications
1.75g / m2 mesh fabric used in the reinforcement of thin slurry, to eliminate small cracks and scattered throughout the surface pressure.
2.110g / m2 mesh cloth is widely used in indoor and outdoor walls,prevent the various materials(such as brick, light wood, prefabricatedstructure) of treatment or caused by a variety of expansion coefficient of wall crack and break.
3.145g/m2 mesh fabric used in the wall and be mixed in variousmaterials (such as brick, light wood, prefabricated structures), to prevent cracking and scatter the whole surface pressure, especially in the external wall insulation system (EIFS).
4.160g / m2 mesh fabric used in insulator layer of reinforcement in the mortar, through shrinkage and temperature changes by providing a space to maintain movement between the layers, prevent crack and rupture due to shrinkage or temperature change.
Specification
Mesh size | 5x5 mesh, 5x4 mesh, 4x4 mesh, 3x3 mesh, 2.5x2.5 mesh, 1x1 mesh |
Weight/square meter | 60g-300g |
Each roll length | 10m, 20m, 30m, 50m-300m |
Width | 0.5m-2m |
Mesh size | 16x16 mesh, 15x14 mesh, 12x12 mesh, 10x10 mesh, 9x9mesh, 8x8 mesh, 6x6 mesh |
Weight/square meter | 40g-120g |
Each roll length | 10m, 20m, 30m, 50m-300m |
Width | 0.05m-2m |
Packing | plastic packing or woven bag or packing according the customer's requirements |
Color | white,blue,green,red,yellow,etc. |
