FSI 5000 Series
Product Quick Detail
- FOB Price
- USD $8.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 100
- Packaging
- packed in paper carton, shipped by wooden case
- Delivery
- 7 to 15work days
Specifications

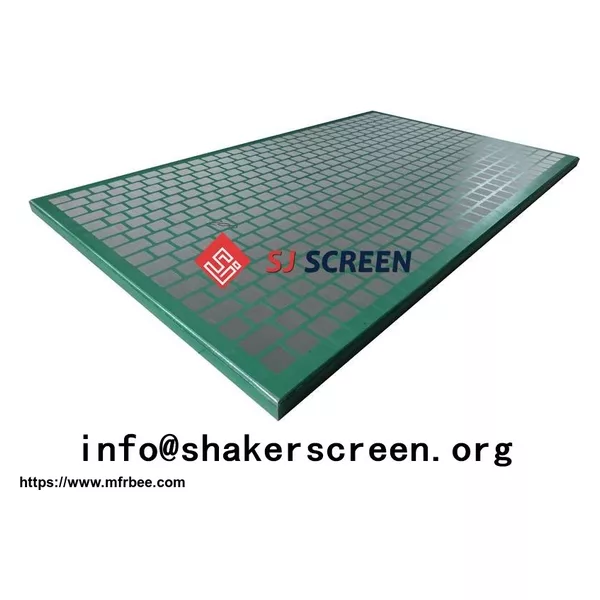

FSI 5000 Series Shale Shakers Screen Replacement – API Compliant
Technical Parameter
- Mesh Material: stainless steel 304/316/316 L.
- Frame Material: Q235 steel.
- Screen Type: XL, XR.
- Size: 1067 × 737 mm.
- Weight: 13 kg.
- API RP 13C Designation: API 20 – API 325.
- Package: packed in paper carton, shipped by wooden case.
- Description
- Competitive Advantage
- Performance Parameter
- Show Details
SJ-FSI 5000 shaker screens is manufactured as the replacement screen for FSI 5000 series shale shake from fluid system INC. Steel frame shaker screens are commonly used in shakers with wedge fastening system. There are wedge blocks used for fastening the screen panels, and result in simple visual checks of screen panels, the repair and maintenance work is easier and time saving. Besides, we master excellent rubber strip seal glue technology to prevent rubber sealing loose and leakage.
Adaptable Shale Shaker Model
SJ-FSI 5000 shaker screens are used as the substitute screen for
- FSI series 5000 BSBS Linear Power Side-By-Side Shaker.
- FSI series 5000B DHC Double Header Mud Cleaner.
- FSI series 5000B CD VGS™ Linear Cutting Drier.
Competitive Advantage
- Current design, technical expertise.
- Reliable & effective for drilling slurry purified equipment.
- SS 304/316/316 L wire mesh cloth is corrosion & wear-resistant.
- Manufactured according to the API RP 13C (ISO 13501).
- Scientific & reasonable cost control system for competitive price.
- Adequate inventory in the shortest time to meet customers' demand.
- Warranty Period: 1 year.
- Working Life: 400–450 hours.
Performance Parameter
Download Catalogue
| Screen Designation | API RP 13C Designation | Conductance Number | D100 Separation (microns) | Non-Blank Area (sq.ft) |
|---|---|---|---|---|
| SJ-FSI 5000-A325 | API 325 | 0.39 | 44 | 6 |
| SJ-FSI 5000-A270 | API 270 | 0.67 | 57 | 6 |
| SJ-FSI 5000-A230 | API 230 | 0.71 | 68 | 6 |
| SJ-FSI 5000-A200 | API 200 | 1.32 | 73 | 6 |
| SJ-FSI 5000-A170 | API 170 | 1.34 | 83 | 6 |
| SJ-FSI 5000-A140 | API 140 | 1.89 | 101 | 6 |
| SJ-FSI 5000-A120 | API 120 | 1.89 | 101 | 6 |
| SJ-FSI 5000-A100 | API 100 | 2.66 | 164 | 6 |
| SJ-FSI 5000-A80 | API 80 | 2.76 | 193 | 6 |
| SJ-FSI 5000-A70 | API 70 | 3.33 | 203 | 6 |
| SJ-FSI 5000-A60 | API 60 | 4.10 | 256.8 | 6 |
| SJ-FSI 5000-A50 | API 50 | 6.62 | 268 | 6 |
| SJ-FSI 5000-A40 | API 40 | 8.64 | 439 | 6 |
| SJ-FSI 5000-A35 | API 35 | 9.69 | 538 | 6 |
| SJ-FSI 5000-A20 | API 20 | 10.88 | 809 | 6 |
| * D100: Particles this size and larger will normally be discarded. * API: Corresponding API sieve equivalent as per API RP 13C. * Conductance No.: This represents the ease with which a liquid can flow through the screen. Larger values represent higher volume handing. |
Show Details
Remarks:
FSI, Fluid system, FSI 5000 are marks of Fluid System INC.
ShengJia only produces the replacement screens but not original from FSI.
