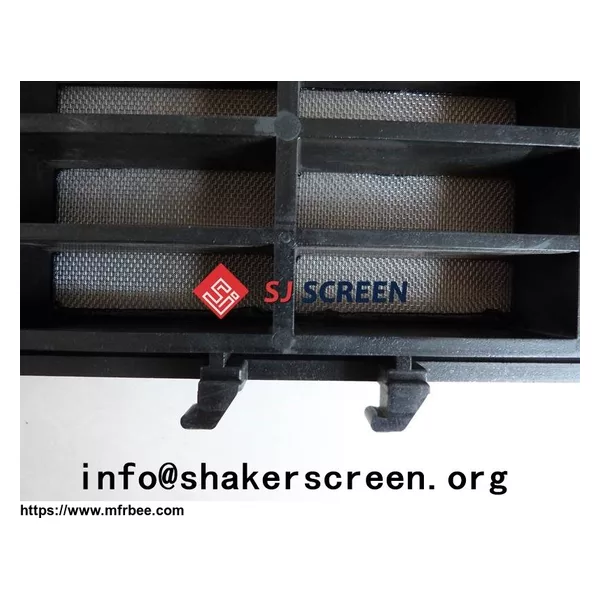

Hook strip soft screen is a type of shale shaker screen. It is made from stainless steel mesh. The structural design of the hook strip soft screen is similar to the hook strip flat shaker screen. It commonly consists of two or three layers of stainless steel mesh. Hook strip soft screen has no metal lining. It is characterized by broad screening area. Compared with hook strip flat screen, it has more available filtration area and lower disposal costs. Hook strip soft screen is cheaper than the other shaker screens, such as hook strip flat shaker screen, steel frame shaker screen and three-dimensional shaker screen.
Selecting different screens depend on different drilling conditions can optimize the screening effect. This type shaker screen is available in various types and sizes. The specifications of hook strip soft screen can be customized according to your specific needs.
Specification
Screen Model | Range of Mesh | Dimension (length × width) | Brand & Model of Shaker | Weight (kg) |
---|---|---|---|---|
HSSS-1 | 20–150 | 600 × 1040 mm | NCS-300 × 2 | 1.5 |
HSSS-2 | 20–150 | 700 × 1165 mm | S250 | 2 |
HSSS-3 | 120–210 | 1400 × 460 mm | ZCN | 2.4 |
HSSS-4 | 120–210 | 1000 × 1150 mm | NS-115/2 | 2.8 |
HSSS-5 | 20–80 | 927 × 914 mm | JSS(U.S.A) | 2.1 |
HSSS-6 | 20–80 | 1219 × 1524 mm | SSS(U.S.A) | 4.5 |
This type replacement screen can be specifically designed to fit various shale shakers. Specifications can be customized according to your needs.
Advantage
Application
