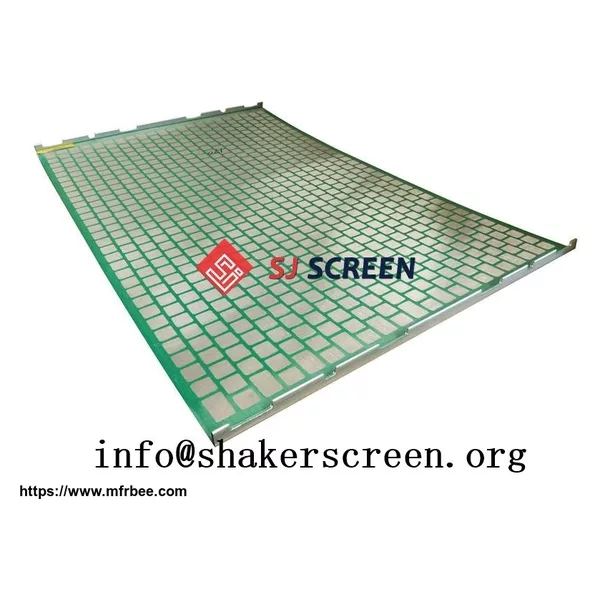

Hook Strip Flat Screen
Product Quick Detail
- FOB Price
- USD $10.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 110
- Packaging
- Packed in paper carton, shipped by wooden case
- Delivery
- 7-15work days
Specifications
Cost Effective Hook Strip Flat Screen for Mud Treatment
Hook strip flat screen is very popular in the shaker screens filed. This type shaker screen has a simple structure and light weight. Design with a metal lining is easy to replace and repair. Hook strip flat screen has high operational efficiency and good fluid handling capacity. It works by preventing solids from passing the screen.
Compared with hook strip soft screen, hook strip flat screen is more durable and reliable. It can filter out the mud and other impurities in oil. Hook strip flat screen is extensively used as vibrating screen in the oil industry. It performs well in waste management and drilling fluids control.
Specifications
- Material: stainless steel wire mesh.
- Hole shape: hexagon.
- Screen layers: two or three.
- Colors: black, blue, red, green, etc.
| Screen Model | Range of Mesh | Dimension (length × width) | Brand & Model of Shaker | Weight (kg) |
|---|---|---|---|---|
| HSFC-1 | 20–325 | 903 × 1155 mm | SWACO BEM-3 | 5.6 |
| HSFC-2 | 20–325 | 697 × 1050 mm | DERRICK FLC 500 Series | 6 |
| HSFC-3 | 20–325 | 697 × 1053 mm | DERRICK FLC 2000 | 4.2 |
| HSFC-4 | 20–325 | 697 × 846 mm | DERRICK FLC 313M | 4 |
| HSFC-5 | 20–325 | 1050 × 570 mm | DERRICK Hyperpool | 4.2 |
| HSFC-6 | 20–250 | 700 × 1165 mm | S250 | 4.6 |
| HSFC-7 | 20–250 | 1186 × 1280 mm | ZX-60 | 9.2 |
This type replacement screen can be specifically designed to fit various shale shakers. Specifications can be customized according to your needs.
Advantages
- Lightweight; quick to operate.
- Simple structure; easy to clean.
- Good filter accuracy; high working efficiency.
- Wide mesh size ranges; fit for various shale shakers.
- Less downtime; lower screen replacement cost.
- Good wear resistance; durable.
- Cost effective.
Application
- Use as vibrating screen in the oil industry.
- Filter the mud and other impurities in oil.
- Drilling fluids and waste management.
- Applied in the mud treatment.
- Used in drilling operations.
-
