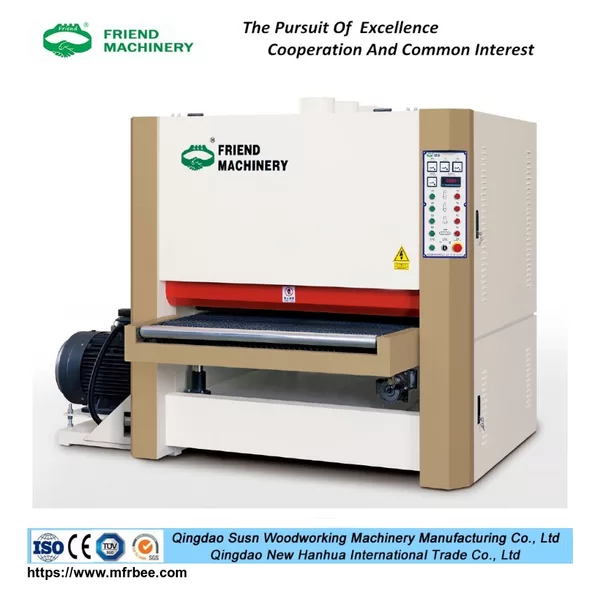

Three heads wide belt sander

Place Of Origin: China
FOB Price: USD $12,000.00 / Piece

Minimum Order: 1

Packaging: N/A

Delivery: 30 Days

Model No.	BSG2313R-R-RP	Main Motor Power	37kw,30Kw,22Kw
Trademark	FRIEND	Total Motor Power	93.55Kw
Working Width	40-1300mm	Working Air Pressure	0.55MPa
Working Thickness	2.5-80mm	Compressed Air Consumption	0.16m³/min
Working Length	≥650mm	Air Speeding of Dust Suction	25-30m/s
Feeding Speed	6-30m/min	Air Volume of Dust Suction	20000m3/h
Sanding Belt Speed	22m/s,22m/s,18m/s	Overall Dimension	2500×2350×1950mm
Sanding Belt Size	1330×2200mm	Net Weight	4500Kg

The sander is primarily designed for calibrating and polishing of plywood, blockboard, wood plastic board, particleboard, MDF board, etc.

1. The body of the sander adopts the modified structure which means that the frame is fixed on the integral steel panel on both sides of the body in order to ensure more stable performance.

2. The precise dynamic balance test of contact rollers, pinch rollers, and tension rollers make the sanding result precise.

3. The contact heads are capable of individual height adjustment via eccentric cams.

4. The polishing pad can be adjusted by hand wheel according to different demands.

5. The electronic pneumatic abrasive belt oscillation system is used to control the sanding belt move safely and stable around the contact roller.

6. The sander is equipped with a conveyor belt type feed drive system, which makes the feeding more stable and the sanding result more precise.

7. The sander is equipped with the automatic brake system on the sanding unit, which can shut down the machine immediately in an emergency.

8. The control panel with press-, dial plate, and digital display make the sander operation easy.

9. Its reliable performance also helps reduce maintenance cost and guarantee production efficiency.

10. Full tools are provided for adjustment and maintenance.
