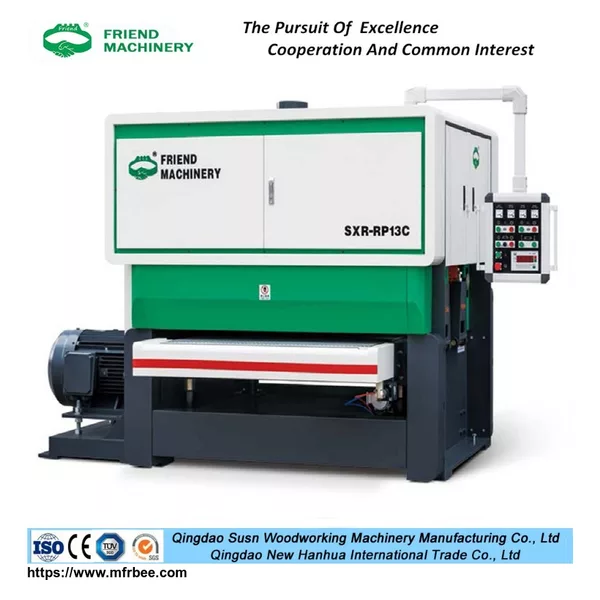

Two heads wide belt sanding machine
Product Quick Detail
- Place Of Origin
- China
- FOB Price
- USD $20,000.00 / Piece
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 30 Days
Specifications
| Model | SXR-RP13CX | Main Motor Power | 55Kw,30Kw |
| Trademark | FRIEND | Total Motor Power | 93.42Kw |
| Working Width | 40-1300mm | Working Air Pressure | 0.55MPa |
| Working Thickness | 3-80mm | Compressed Air Consumption | 0.12m³/min |
| Working Length | ≥750mm | Air Speeding of Dust Suction | 25-30m/s |
| Feeding Speed | 2-30m/min | Air Volume of Dust Suction | 23000m3/h |
| Sanding Belt Speed | 22m/s,20m/s | Overall Dimension | 2900×2700×2100mm |
| Sanding Belt Size | 1330mm×2500mm | Net Weight | 7000Kg |
1. The body of the sander is well welded by the heavy plate, steel-beam and angle steel frame, which improves the stability of the machine.
2. The precise dynamic balance test of the contact rollers, pinch rollers, and tension rollers make the sanding result precise.
3. The contact heads are capable of individual height adjustment via eccentric cams.
4.The polishing pad can be adjusted by hand wheel according to different demands.
5. The electronic pneumatic abrasive belt oscillation system is used to control the sanding belt move safely and stable around the contact roller.
6. The sander adopts stepless speed regulation motor for its feeding system, which ensures stability and high efficiency of feeding.
7. The sander is equipped with a conveyor belt type feed drive system which makes the feeding more stable and the sanding result more precise.
8. The sander is equipped with an automatic brake system on the sanding unit, which can shut down the machine immediately in an emergency.
9. Brush roller cleans the panel after sanding.
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Asia,Emerging Markets
- Founded Year:2001
- Address:1st industrial zone of Yinghai, Jiaozhou
- Contact:nevo zhu
