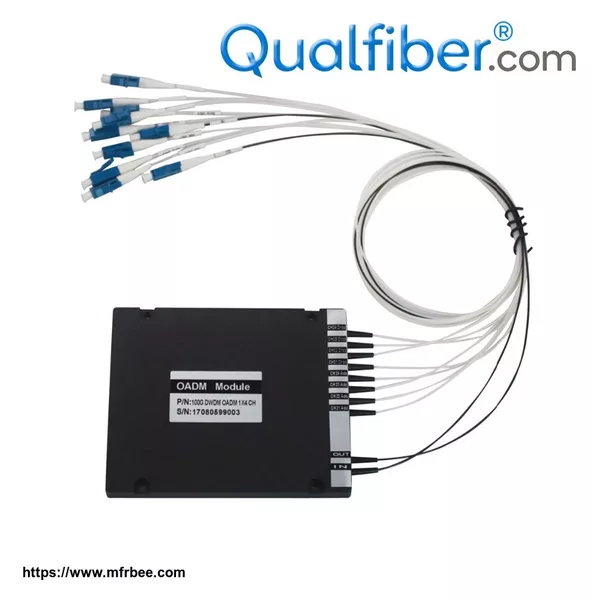

200GHz DWDM Module(4,8,16F)
Product Quick Detail
- FOB Price
- USD $30.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- 2km/drum
- Delivery
- 15 Days
Specifications
200GHz dense wavelength division multiplexer (DWDM) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add and drop
at the ITU wavelengths.
| Parameter | 4-Channel | 8-Channel | 16-Channel | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength（nm） | ITU 200GHz Grid | ||||||
| Channel Spacing（nm） | 200 | ||||||
| Channel Passband (@-0.5dB bandwidth)(nm) | >0.5 | ||||||
| Insertion Loss（dB） | ≤1.6 | ≤3.5 | ≤4.2 | ||||
| Channel Uniformity（dB） | ≤0.6 | ≤1.0 | ≤1.5 | ||||
| Channel Ripple（dB） | <0.3 | ||||||
| Isolation（dB） | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 |
| Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |
| Insertion Loss Temperature Sensitivity(dB/℃) | <0.005 | ||||||
| Wavelength Temperature Shifting (nm/℃) | <0.002 | ||||||
| Polarization Dependent Loss（dB） | <0.1 | <0.1 | <0.15 | ||||
| Polarization Mode Dispersion（ps） | <0.1 | ||||||
| Directivity（dB） | ≥50 | ||||||
| Return Loss（dB） | ≥45 | ||||||
| Maximum Power Handling（mW） | 300 | ||||||
| Opterating Temperature(℃) | -5~+75 | ||||||
| Storage Temperature(℃) | -40~+85 | ||||||
| Package dimension(mm) | A: L100×W80×H10 | ||||||
| L120×W80×H18 | |||||||
| L141×W115×H18 |
1、Above specifications are for devices without connector.
2、Specifications may change without notice.
