Automatic Universal Relay Test Protection Relay Test kit
Product Quick Detail
- Place Of Origin
- China (Mainland)
- FOB Price
- USD $5.00 / Piece
- Minimum Order
- 1
- Packaging
- 1 set each wooden case
- Delivery
- 7 Days
Specifications

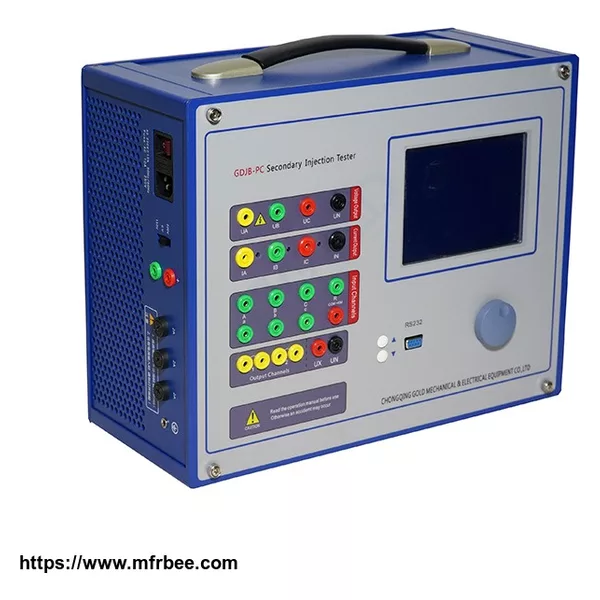

Automatic Universal Relay Test Protection Relay Test kit
INTRODUCTION:
The instrument is applied to test the relay unit in relay protection system.At the same time it could be considered as a universal three phase AC/DC voltage source or current source.
Protection Relay Test kit| PARAMETER | GDJB-PC |
| Current output | |
| Setting range AC | 3-phase: 3*0~40A 1-phase: 1*0~120A |
| Setting range DC | 3-phase: 3*0~10A 1-phase: 1*0~30A |
| Power AC | 3-phase: 3*300VA/W 1-phase: 1*420VA/W |
| Power DC | 1-phase: 1*80VA/W |
| Voltage output | |
| Setting range AC | 3-phase: 3*0~120V 3-phase: 0~240V |
| Setting range DC | 3-phase: 6*0~160V 3-phase: 0~320V |
| Power AC | 3-phase: 3*80VA/W 1-phase: 1*100VA/W |
| Power DC | 3-phase: 3*70VA/W 1-phase: 1*140VA/W |
| Switch parameters input | 7 channels |
| Switch parameters ouput | 2 channels |
| Time measurement | 0.1ms~999s / 0.1ms |
