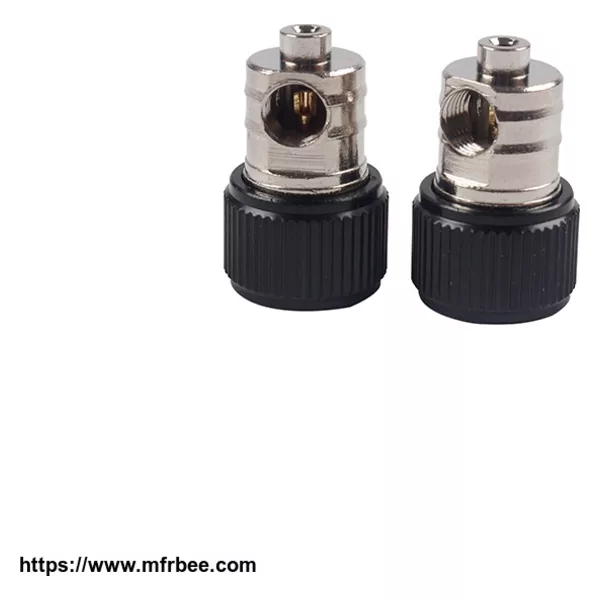

RF Coaxial SMA Antenna Connector
Product Quick Detail
- Place Of Origin
- China
- Material
- Copper
- Type
- SMA
- Product Name
- SMA antenna connector
- Sample
- please ask sample for testing
- Minimum Order
- 100
- Application
- RF
- Brand Name
- FUTAI
- Gender
- Male
- Plating
- Black
- Packaging
- 100 pcs/bag
- Delivery
- 7 Days
Specifications
Specifications:
| Model | FT-Connector-021Rubber | |
| Major Technical Characteristics | ||
| Type | SMA-C-KY1.5-021Rubber | |
| Impedance | 50Ω | |
| Frequency Range | DC~12.4GHz(Semi-Rigid Cable DC-18GHz) | |
| Center conductor retention force | ≥0.28 N | |
| Insertion Loss | ≤0.15dB/6GHz | |
| Voltage Standing Wave Ratio |
Straight Flexible Cable ≤1.10+0.02f
Semi-Rigid Cable≤1.07+0.018f |
|
|
Right angle Flexible Cable ≤1.20+0.03f
Semi-Rigid Cable≤1.17+0.02f |
||
| Durability(mating) | ≥500(cycles) | |
| Cable | for Rubber ANTENNA | |
| Material & Plating | ||
| Body | Brass | Gold plated |
| Pin contact | Brass | Gold plated |
| Socket contact | Beryllium-copper Customized) | Gold plated |
| Resilient contact | Beryllium-copper | Gold plated |
| Insulator | PTFE | |
| Crimp ferrule | Copper alloy | Nickel or gold plated |
| O-ring sealing | 6146 silicone rubber |
