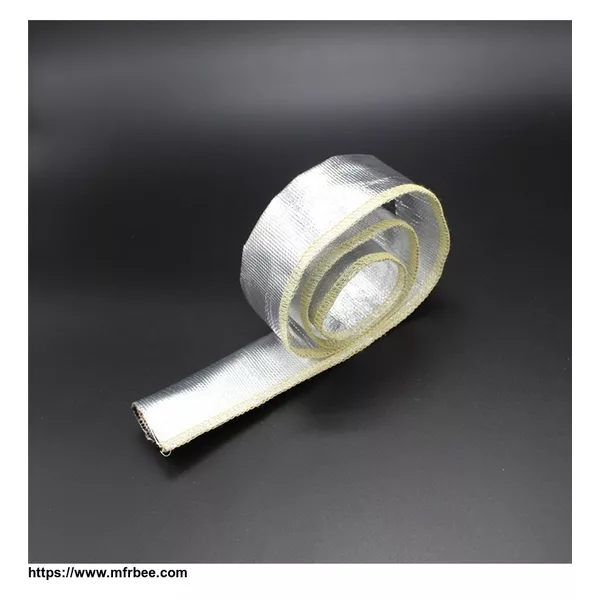

SEALFS Aluminum Foil Coated Fiberglass Heat Reflective Sewn Sleeve is a layer of aluminum foil under fiberglass base fabric,and sewn with high temperature thread into a sleeve. This sleeve is easily to install due to the smooth inner fiberglass surface and reflects more then 95% radiant heat.
Features
This high temperature, heat resistant and radiant heat reflective sleeve can be used to protect industrial wires, cables, hoses (hydraulics), piping and tubing from radiant heat sources such as glowing steel slab, liquid metal pour stream, infrared heaters and other similar sources.
Application
It is used to protect the industry & automotive wires, cables, hydraulic hoses, piping and tubing from radiant heat sources.
Specifications
DATASHEET | ||||
Part Number | Normal Inside diameter | Meter for spool | ||
Inches | mm | Dash # | Meter | |
SEALFS-13 | 1/2 | 13 | -8 | 20 |
SEALFS-16 | 5/8 | 16 | -10 | 20 |
SEALFS-19 | 3/4 | 19 | -12 | 20 |
SEALFS-22 | 7/8 | 22 | -14 | 20 |
SEALFS-25 | 1 | 25 | -16 | 20 |
SEALFS-29 | 1 1/8 | 29 | -18 | 20 |
SEALFS-32 | 1 1/4 | 32 | -20 | 20 |
SEALFS-35 | 1 3/8 | 35 | -22 | 20 |
SEALFS-38 | 1 1/2 | 38 | -24 | 20 |
SEALFS-41 | 1 5/8 | 41 | -26 | 20 |
SEALFS-44 | 1 3/4 | 44 | -28 | 20 |
SEALFS-48 | 1 7/8 | 48 | -30 | 20 |
SEALFS-51 | 2 | 51 | -32 | 20 |
SEALFS-57 | 2 1/4 | 57 | 36 | 20 |
SEALFS-60 | 2 2/5 | 60 | -38 | 20 |
SEALFS-64 | 2 1/2 | 64 | -40 | 20 |
SEALFS-67 | 2 5/8 | 67 | -42 | 20 |
SEALFS-70 | 2 3/4 | 70 | -44 | 20 |
SEALFS-73 | 2 7/8 | 73 | -46 | 20 |
SEALFS-76 | 3 | 76 | -48 | 20 |
SEALFS-83 | 3 1/4 | 83 | -52 | 20 |
SEALFS-89 | 3 1/2 | 89 | -56 | 20 |
SEALFS-95 | 3 3/4 | 95 | -60 | 20 |
SEALFS-102 | 4 | 102 | -64 | 20 |
Technical Datasheet | |
Material | Aluminum, fiberglass |
Working temperature | -40℃ - +260℃ |
Flammability | VW-1 |
Melting point | +537℃ |
Standard Color | Silver |
Standard Thickness | 0.8 mm |
MOQ | 100 meter each size |
Cutting tool | Scissors |
Aluminum Coated Fiberglass Heat Reflective Sleeving ID 6 to 150 mm. Taking two materials that provide high heat protection and joining them to create a high temperature heat shield that protects wires, cables, hoses and pipes from radiant and convective heat. By using a two ...
High Temperature, Heat Resistant & Radiant Reflective for wire, cable, hose and tubing protection This high temperature, heat resistant and radiant heat reflective sleeve can be used to protect industrial wires, cables, hoses (hydraulics), piping and tubing from radiant heat ...
