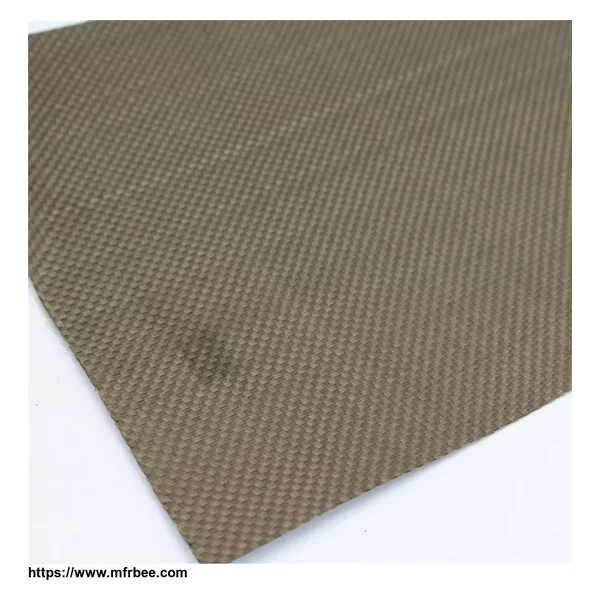

Aluminized Titanium Heat Shield Mat is made by heat reflective aluminum and volcanic rock fiber. This shield is capable of reflecting 90% of radiant heat. Face the aluminized side toward the source of radiant heat to shield heat away.
Feature
Aluminized radiant heat barrier can withstand up to 2000 degrees F of radiant heat and can withstand direct contact up to 1200 degrees F.
Application
Use heat barrier on Firewall, floor pan, under cab (above: muffler, catalytic convertor, DPF, exhaust system), fuel cel.
Specifications
Datasheet | |
Material | Aluminum, LAVA rock fiber |
Continuous Temperature | 1800 °F |
Melt Temperature | 2000 °F |
Standard Thickness | 0.6mm |
Thickness | 0.2, 0.6, 0.8 mm |
Length | MAX 50 meter/roll |
Color | Nature |
Cutting Tool | Scissor |
Part Number | Description |
373060 | 300MM*600MM |
376090 | 600MM*900MM |
3790120 | 900MM*1200MM |
371850M | 1800MM*50M |
Notes:
Special size and color upon request.
