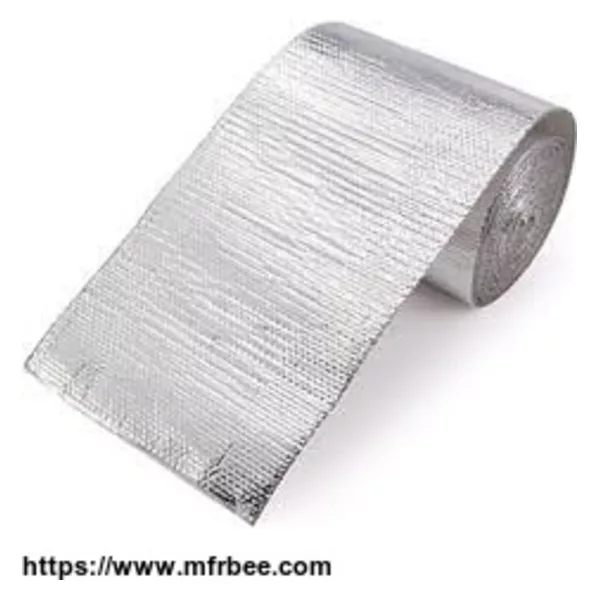

Aluminized Silica Heat Shield Barrier
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- carton box
- Delivery
- 15 Days
Specifications
This Aluminized Silica Heat Shield Barrier is made from woven silica and aluminum mylar finish.
This shield is capable of reflecting 90% of radiant heat. Face the aluminized side toward the source of radiant heat to shield heat away.
Feature
Aluminized radiant heat barrier can withstand up to 2000 degrees F of radiant heat and can withstand direct contact up to 1200 degrees F.
Application
Use heat barrier on Firewall, floor pan, under cab (above: muffler, catalytic convertor, DPF, exhaust system), fuel cel.
Specifications
| Datasheet | |
| Material | Aluminum, silica |
| Continuous Temperature | 2000 °F |
| Melt Temperature | 3000 °F |
| Standard Thickness | 0.75mm |
| Thickness | 0.75mm, 1.3mm |
| Length | MAX 50 meter/roll |
| Color | Silver |
| Cutting Tool | Scissor |
| Part Number | Description |
| 281212 | 12 in × 12 in |
| 281224 | 12 in × 24 in |
| 281280 | 12 in × 50 in |
| 281818 | 18 in × 18 in |
| 282424 | 24 in × 24 in |
| 282448 | 24 in × 48 in |
| 282640 | 26 in × 40 in |
| 283658 | 36 in × 58 in |
| 284036 | 40 in × 36 in |
| 284050 | 40 in × 50 in |
| 284046M | 40 in × 164 ft |
Notes:
Special size and color upon request.
