1.Annual output:
5million to 30 million sqm(based on thickness of 9.5mm gypsum
board)
2.Working time: 24hours/day and 300 working
days/year
3.Raw material: Gypsum powder, shielding paper, modified starch, foaming agent,
glue
4.Fuel: Natural gas, diesel, heavy oil or
coal
5.Product quality and specification:
1) The product is in compliance with National
Standard GB/T9775-2008
2) Product specification:
Length: 2400mm~3600mm
Width: 1200mm or
1220mm
Thickness: 8mm-20mm

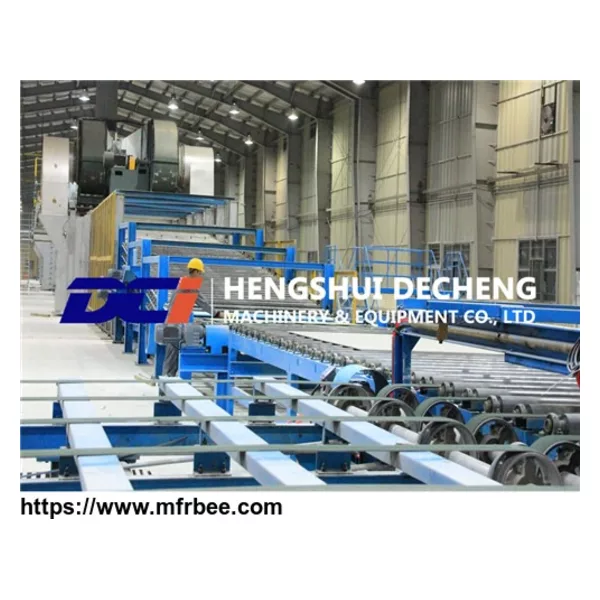

6.Main process:
1)Raw material
blending;
2)Shaping;
3)Wet board/panel conveying;
4)Drying;
5)Dry board/panel
conveying;
6)Finished product stacking and storage.
7.Main technology:
The production line adopts special designed hot air stove heating
system
8.Raw material consumption list:
(Based on 9.5 mm gypsum board for reference)
Gypsum | 6.8kg/m2 |
Shielding paper | 0.48kg/m2 |
Modified starch | 0.035kg/m2 |
Foaming agent | 0.008kg/m2 |
Glue | 0.005kg/m2 |
Fiberglass (optional) |
0.025kg/m2 |
Electricity | 0.3kwh/m2 |
Water | 4.8kg/m2 |
Light oil | 1,000,000kcal/hour |
Natural gas | 0.45m³/m2 |
Till now, we've manufactured and supplied complete sets of machine lines to Russia, Oman, Uzbekistan,United Arab Emirates, Iran.
After Sale Service
DCI is pleased to provide the parts,knowledge and expertise to assist with all your plant's maintenance and upgrade
needs.We can supply as below:
Spare Parts:
All Rollers and
Shafts
Mixer Parts
Forming Plate Parts
Saw Blades
Forming Belts/Conveyor
Belting
Carbon Bearings
Dryer Sprockets
Chain
Chain
Guides
Head/Tail Pulleys
Plat Belt Drive Pulleys
Filter Bags
Raw
Material
Modified Starch
Paper
Foaming
Agent
Glue
Edge Tape
Fiberglass
White
Tape
Technical Support
DCI's guarantee is within 1 year free after delivery and long-term
service
DCI can help u to modify equipment and increase production capacity
DCI can help u solve any problems related to the gypsum
equipment
DCI,the gypsum machinery expert,your best choice!
