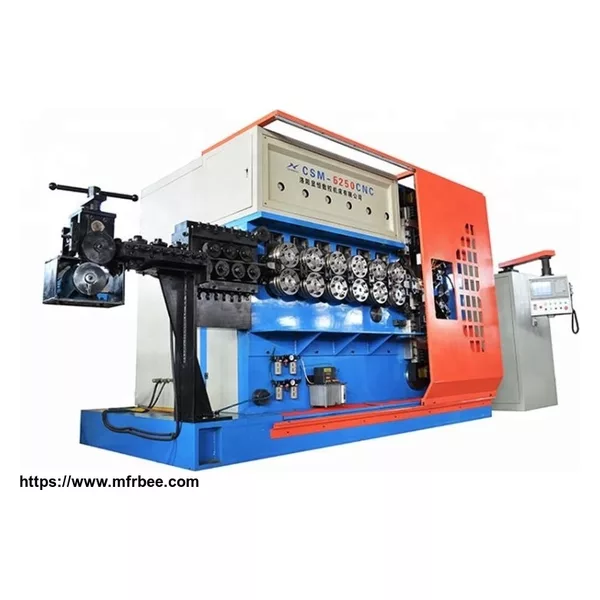

CSM 6250 CNC Compression Spring Coiling Machine

Minimum Order
1
Place Of Origin
China
Packaging
Wood paneled
Delivery
15 Days
Specifications of CSM 6250 CNC Compression Spring Coiling Machine

Model No:CSM 6250 CNC
Wire Dia:8-25 mm
Max. Outside Diameter:290 mm
Speed of the Wire Feed:30 m/min
Total power of Motors:55 Kw
Net Weight:32500 Kg
Machine Dimension:4860*2048*2550
Motor:Yaskawa servo motor in Japan
Driver part:Yaskawa servo motor driver
Computer control system:Taiwan yitu
Material of the wire:65Mn,60Si2Mn,1Cr18Ni9 ,55CrSi,50CrV ,51CrV4 and so on
