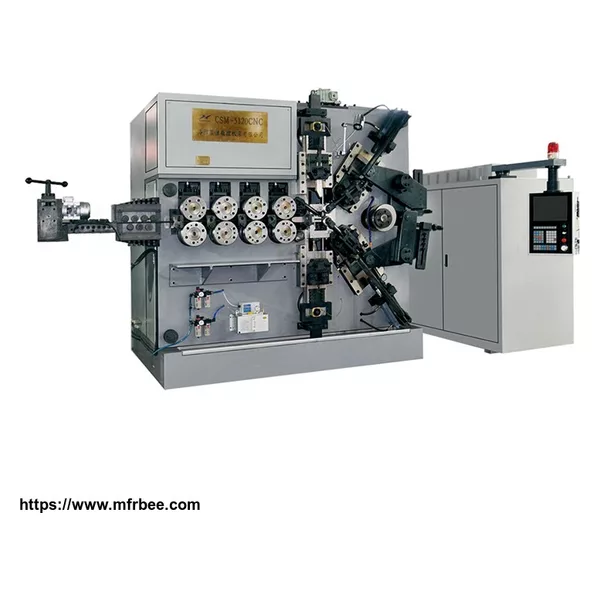

CSM 5120 CNC compression Spring coiling Machine
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- Wood paneled
- Delivery
- 15 Days
Specifications
Specifications of CSM 5120 CNC compression Spring coiling Machine:
Model No.:CSM 5120 CNC
Wire Dia:6-12 mm
Max. Outside Diameter:150 mm
Speed of the Wire Feed:57 m/min
Total power of Motors:69.9 Kw
Net Weight:10000 Kg
Machine Dimension:3200*1800*2450
Motor:Yaskawa servo motor in Japan
Driver part:Yaskawa servo motor driver
Computer control system:Taiwan yitu
Material of the wire:65Mn,60Si2Mn,1Cr18Ni9 ,55CrSi,50CrV ,51CrV4 and so on
- Country: China (Mainland)
- Business Type: Manufacturer,Trading Company
- Market:Africa,Americas,Asia,Europe,European Union,Middle East,Oceania
- Founded Year:2003
- Address:B11, Forth Floor, NO.1 Building, Fenghua Road, Yinkun Science and Technology Park, High-Tech Development Zone, Luoyan
- Contact:Jenny Zhang
