Linshang automotive paint meter (coating thickness gauge)

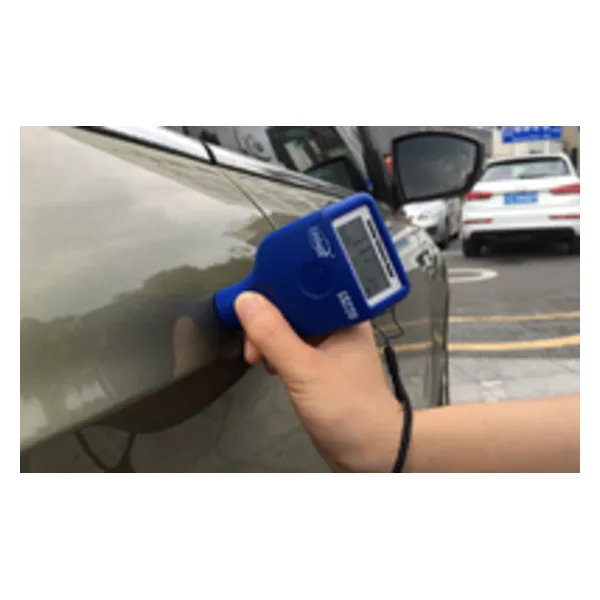

Automotive paint meter, also called car paint meter, is a special instrument for detecting the automobile substrate surface coating thickness. The covering surface of a car basically has a paint coating. Using a automotive paint meter to measure the paint surface coating thickness can directly determine the sheet metal and spray paint of a car. It can also indirectly determine the damage degree of the car. The LS220 automotive paint meter has small size and is especially suitable for carrying around when going out for inspection. This car paint thickness gauge has the characteristics of fast test speed, stable test data, high measurement accuracy and so on.
1. The LS220 automotive paint meter has high-sensitivity probe, fast test speed. Measurement can be completed in 0.5 seconds.
2. The LS220 car paint thickness gauge uses dual-purpose probes, which are suitable for detecting the paint thickness on iron materials and also for detecting the paint thickness on aluminum materials. It can also recognizes non-metallic substrates.
3．This automotive paint meter uses an industrial-grade LCD screen, which can be used at minus 20 ° C. No worries for outdoor use in winter of Northern China.
4．No calibration is needed just simple zero adjustment to ensure the measurement accuracy.
5．Wear-proof ruby probe tip for long-term use with strong corrosion and abrasion resistance.
6．With temperature compensation function and digitalizing analog signal function, these sensors are unsusceptible to interference.
| Parameter | LS220 Coating Thickness Gauge |
| Probe tip | Ruby fixed |
| Measuring principle | Fe:Hall Effect / NFe: Eddy current |
| Probe type | Built-in integrated probe |
| Measuring range | 0.0-2000μm |
| Resolution | 0.1μm:(0μm-99.9μm) 1μm:(100μm-999μm) 0.01mm:(1.00mm-2.00mm) |
| Accuracy | ≤±(3% reading+2μm) |
| Unit | μm / mil |
| Measuring interval | 0.5s |
| Minimum measuring area | Ø =25mm |
| Minimum curvature | Convex:5mm / Concave:25mm |
| Minimum substrate thickness | Fe:0.2mm / NFe:0.05mm |
| Display | 128×48 dot matrix LCD |
| Power supply | 2pcs of 1.5V AAA alkaline battery |
| Range of operation temperature | -20℃-50℃ |
| Storage temperature range | -20℃-60℃ |
| Host size | 101*62*28 mm |
| Weight(with battery) | 79 g |
