LS125+UVCWP-X1 UV light meter

FOB Price: USD $442.00 / Piece
Place Of Origin: China(Mainland)

Minimum Order: 1

Packaging: 1 pc each box

Delivery: 15 Days

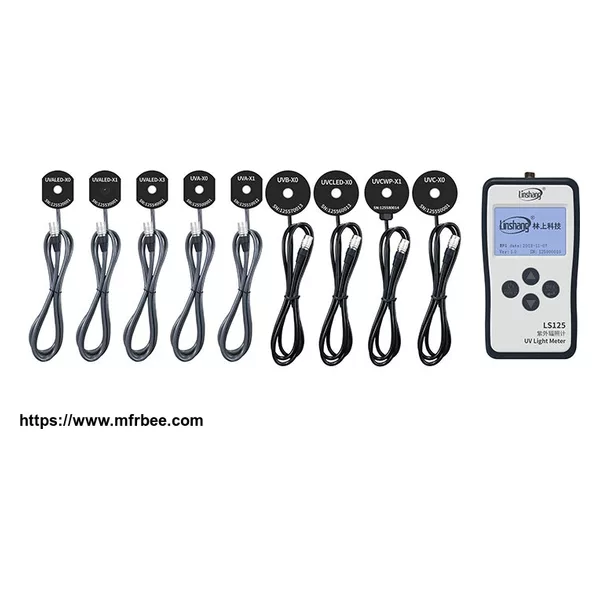

The LS125 UV light meter is a smart host that can support 9 different types of probes. Its main function is data display. The UVCWP-X1 probe is one of the 9 probes equipped with the LS125 host. The probe's spectral response range is 230nm-280nm, the peak wavelength is 254nm. This UV radiometer is waterproof to 1 meter deep. It is a probe specially developed for water treatment high-power germicidal lamps.

Water treatment is divided into wastewater treatment, urban water supply treatment, drinking water treatment, purified water treatment, and farm water treatment. There are two methods of water treatment. The first is to put sterilization lamps into the water to sterilize. The second method is to sterilize the lamp in a sleeve. Because the water flow rate is too fast, the germicidal lamp time is sometimes less than 1 second, so a high-power germicidal lamp or a longer ultraviolet lamp is required to sterilize. LS125 + UVCWP-X1 waterproof light meter is a professional instrument for detecting water treatment germicidal lamps.

Parameters UVCWP-X1 Probe

Spectral response 230nm-280nm, λp = 254nm

Power measuring range 0 - 200000μW / cm²

Resolution 0.1μW / cm²

Energy measuring range 0-9999999μJ/cm²

Record time 0-99999s

Measuring accuracy ±10%

Sampling speed 6 times/second

Optional unit μW / cm² (default), mW / cm², W / m²

Test Hole Diameter ￠=10mm

Probe size Diameter 50mm × thickness 20mm

Waterproof depth 1m

Packing box dimension 24 * 6 * 5 cm (L * W * H)
