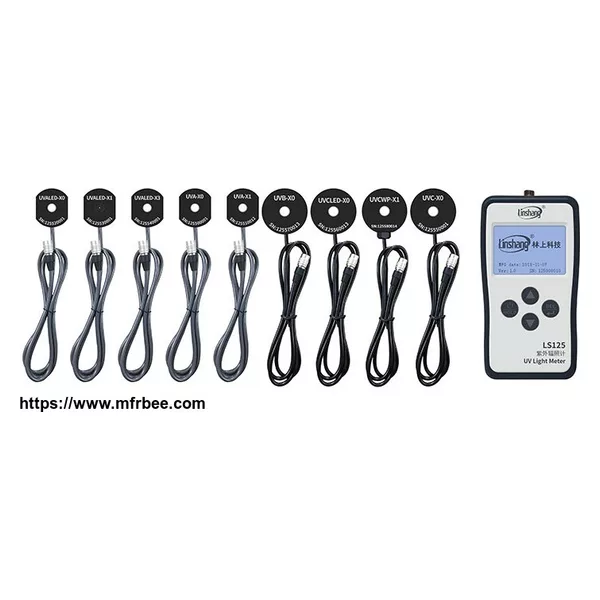

LS125+UVCLED-X0

The LS125 UV light meter is a smart host that can support 9 different types of probes. Its main function is data display. The UVCLED-X0 probe is one of the 9 probes equipped with the LS125 host. The probe's spectral response range is 240nm-320nm, suitable for intensity and energy detection of 260nm-285nm high power LED germicidal lamp, such as 275nm, 285nm LED light source.

Compared with traditional low-pressure mercury lamps, LED germicidal lamps have the characteristics of longer service life, more energy saving and higher efficiency. At present, they have been widely used in disinfection of various small household appliances. Such as: disinfection bags, bottle sterilizers, toothbrush sterilizers, wall breakers, trash cans, etc. In these places where LED germicidal lamps are used, the UVCLED-X0 probe needs to be used to detect the radiation intensity of its ultraviolet light source.

Parameters UVCLED-X0 Probe

Spectral response 240nm-320nm, suitable for testing 260nm-285nm

sterilization UV LED

Power measuring range 0 - 200000μW / cm²

Resolution 0.1μW / cm²

Energy measuring range 0-9999999μJ/cm²

Record time 0-99999s

Measuring accuracy ±10%

Sampling speed 6 times/second

Optional unit μW / cm² (default),mW / cm², W / m²

Test Hole Diameter ￠=10mm

Probe size Diameter 39mm × thickness 15mm

Packing box dimension 24 * 6 * 5 cm (L * W * H)
