Application |

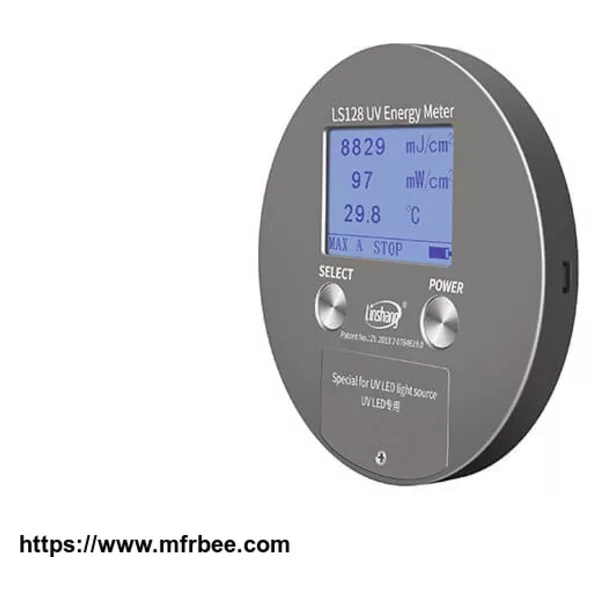

Light intensity, energy and temperature measurement of UV LED light sources |
Spectral range |
340nm --- 420nm, calibrated at 395nm UV LED light sources |
Irradiance measuring range | 0 - 40000 mW/cm² |
Irradiance resolution | 1 mW/cm² |
Energy measuring range | 0 - 999999mJ/cm² |
Energy measuring accuracy | ± 10% , ± 5% (typical) |
Temperature measuring range | -55°C - +125°C |
Sampling speed | 2048 times/second |
Irradiance data storage interval | 32 times/second |
Temperature data storage interval | 2 times/second |
Recording period | 32 min |
Power supply | 2 AAA alkaline dry batteries |
Display | 240*160 Dot matrix LCD |
Dimension | Diameter 120mm * Thickness 13mm |
Weight | 327g |
