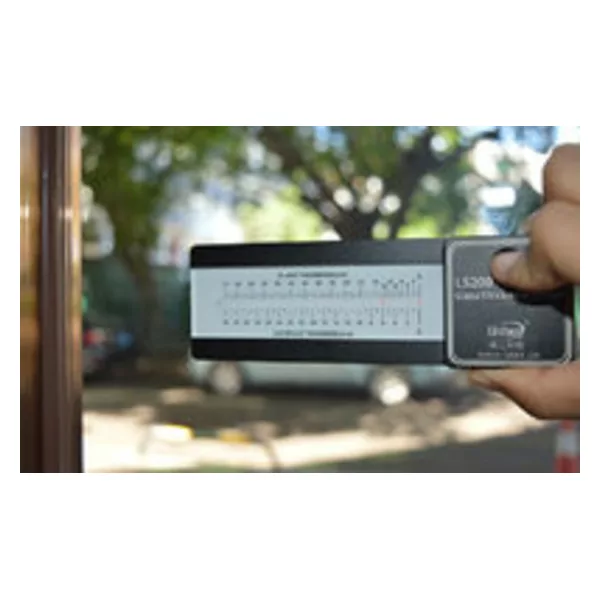

LS200 glass thickness meter

LS200 Glass Thickness Meter Introduction

Linshang LS200 glass thickness meter can be used for thickness measurement of single-layer glass, insulating glass and cylindrical glass bottles. It is especially suitable for measurement occasions where ordinary scales or calipers cannot or are not easy to operate, such as measuring the wall thickness of glass bottles and the thickness of laminated glass windows. For the measurement of the insulating glass thickness, the thickness of each glass layer and the intermediate air layer can be measured simultaneously. The glass thickness meter is suitable for the glass thickness measurement in quality inspection, supervision, teaching, production, sales, engineering construction and other occasions.

LS200 Glass Thickness Meter Parameters

Measurement accuracy ± 0.5mm

Measurement range Glass thickness 70mm, air interlayer 34mm

Battery Standard 2032 button battery

Dimension 160mm × 55mm × 25mm (L*W*H)

Weight 250 g
