UV integrator for LED

FOB Price
USD $442.00 / Piece
Place Of Origin
China(Mainland)
Minimum Order
1
Packaging
1 pc each box
Delivery
5 Days

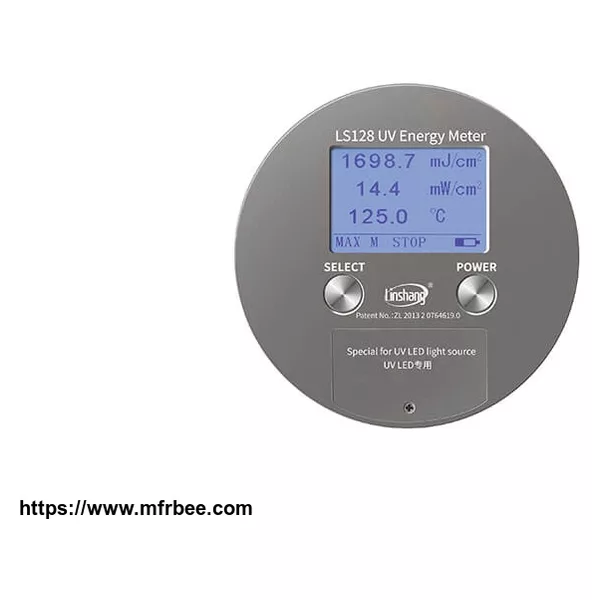

LS128 UV puck is used to test the ultraviolet energy and uv light radiation intensity of the uv LED light source of 365nm-405nm. It is widely used in uv curing machine , uv dryer, exposure machine.

Application Light intensity, energy and temperature
measurement of UV LED light sources
Spectral range 340nm --- 420nm, calibrated at 395nm
UV LED light sources
Irradiance measuring range 0 - 40000 mW/cm²
Irradiance resolution 1 mW/cm²
Energy measuring range 0 - 999999mJ/cm²
Energy measuring accuracy ± 10% , ± 5% (typical)
Temperature measuring range -55°C - +125°C
Sampling speed 2048 times/second
Irradiance data storage interval 32 times/second
Temperature data storage interval 2 times/second
Recording period 32 min
Power supply 2 AAA alkaline dry batteries
Display 240*160 Dot matrix LCD
Dimension Diameter 120mm * Thickness 13mm
Weight 327g
