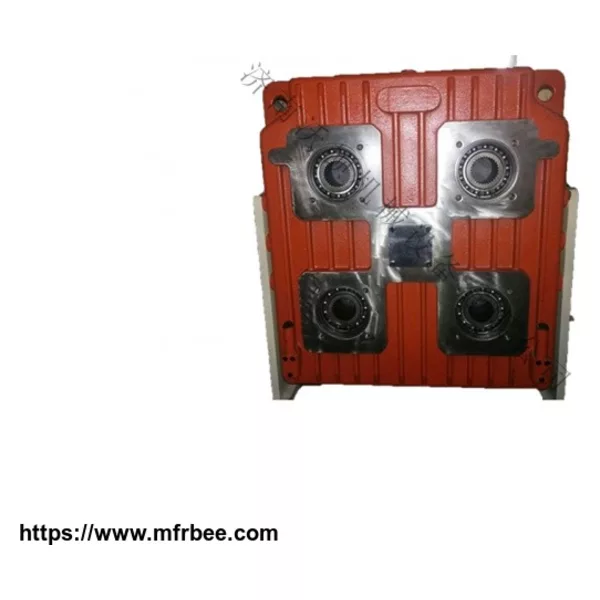

Transfer Case Series

Place Of Origin
China
Minimum Order
1
Packaging
wood box
Delivery
As your demand
Transfer Case Series
FDX700-1:2 technical parameters
Maximum power p 700kW
Input torque T 3000Nm
Single pump power p 330kW
Maximum torque of single pump T 1800Nm
Maximum input speed n 230orpm
Maximum output speed n 2700rpm
Shell material cast iron


Slow down 0.673 0.740 0.813 0.891 0.977
Growth rate 1.486 1.351 1.230 1.122 1.024


2.


FDX400-1 points 3 technical parameters
Maximum power P 400kW
Input torque T 1800Nm
Single pump power P 240kW
Maximum torque of single pump T 850Nm
Maximum input speed n 2600rpm
Maximum output speed n 2800rpm
Shell material cast iron

Transmission ratio

0.673 0.740 0.813 0.891 0.977
1.486 1.351 1.230 1.122 1.024


3.



Fdx700-1: 4 technical parameters
Maximum power p 700kW
Input torque T 3100Nm
Single pump power p 340kW
Maximum torque of single pump T 1800Nm
Maximum input speed n 2300rpm
Maximum output speed n 2700rpm
Shell material cast iron


Slow down 0.673 0.740 0.813 0.891 0.977
Growth rate 1.486 1.351 1.230 1.122 1.024


Dimension a can be machined according to different engine flywheel housing dimensions.

In general, the sizeof a is SAE1# -511. 18,SAE2# - 447.68,SAE3# - 409.58


PS: All products can be customized according to customer needs.
