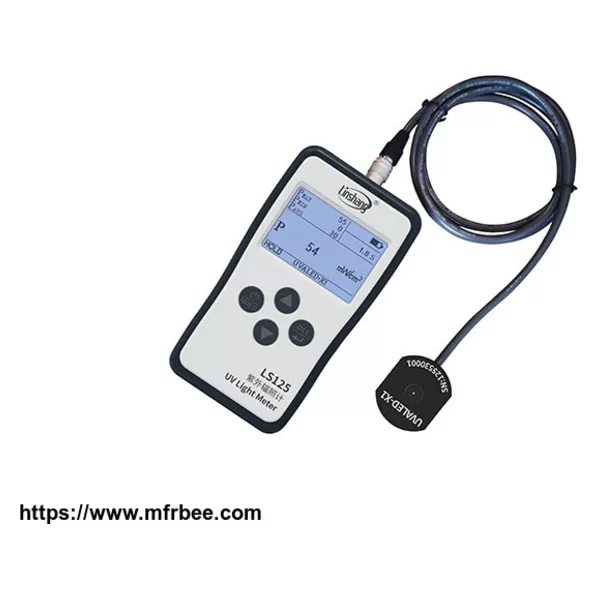

UV meter LS125+UVALED-X0

FOB Price: USD $420.00 / Piece
Place Of Origin: China(Mainland)

Minimum Order: 1

Packaging: 1 pc each box

Delivery: 12 Days

Parameters UVALED-X0 Probe

Spectral response 340nm-420nm, calibrated with 395nm UV LED

Power measuring range 0 - 20000mW / cm²

Resolution 1mW / cm²

Energy measuring range 0-9999999mJ/ cm²

Record time 0-99999s

Measuring accuracy ±10%

Sampling speed 2048 times/second

Optional unit mW / cm²(default), W / cm², W / m²

Test Hole Diameter ￠=10mm

Probe size 39mm × 32mm × 15mm (L*W*H)

Packing box demension 24 * 6 * 5 cm (L * W * H)

Compared with mercury lamps, UVA LED light sources have the characteristics of long service life, no heat radiation, high energy, uniform irradiation. It is safer and more environmentally friendly. This kind of light source has been widely used in UV ink curing, UV adhesive curing, PCB exposure, 3D printing, optical communications and many other industries. For the places that adopt UVA LED light source, they need to use LS125 UV light meter equipped with the UVALED-X0 probe to detect the radiation intensity and energy of its light source.
