Window film meter LS101

Size 175mm*120mm*30mm (L*W*H)

Test slot 20mm * 70 mm (W*H)

Weight 360g

Resolution 0.1%

Accuracy ±2% (Colorless and transparent material)

UV Peak wavelength 365nm

Visible light 380-760nm, conforming to the CIE photopic luminosity function

IR Peak wavelength 940nm

Power Supply 4*AA alkaline batteries or 5V AC/DC power supply

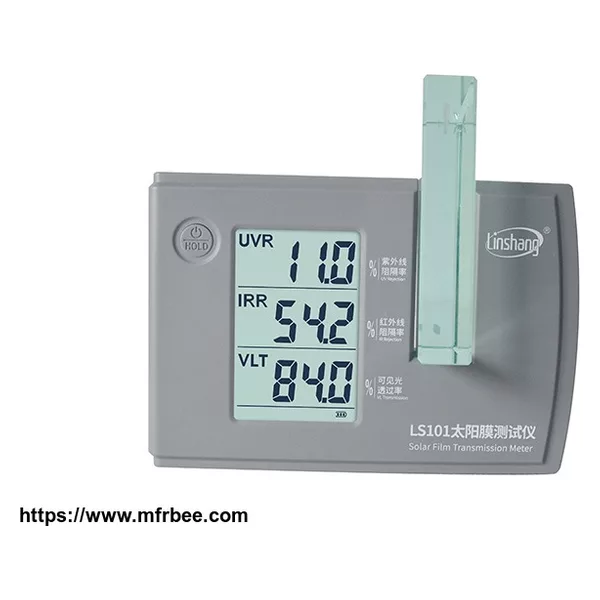

Linshang LS101 solar film transmission meter adopt parallel light path design which is very suitable for optical properities testing of automotive films, explosion-proof films, architectural films, thermal insulation films, film glass and other materials. It can measure ultraviolet rejection rate, infrared rejection rate and visible light transmittance at the same time. The large-screen LCD screen display is convenient for reading.
