Window film meter LS180

UV peak wavelength 365nm

IR peak wavelength 1400nm

Visible light 550nm

Resolution 0.1%

Measurement accuracy 0.1%

Test card slot better than ± 2% (colorless and uniform transparent material)

weight about 590g

Dimension 216mm × 134mm × 29mm (L*H*W)

Power supply 5V AC/DC Adapter or mobile power( optional)

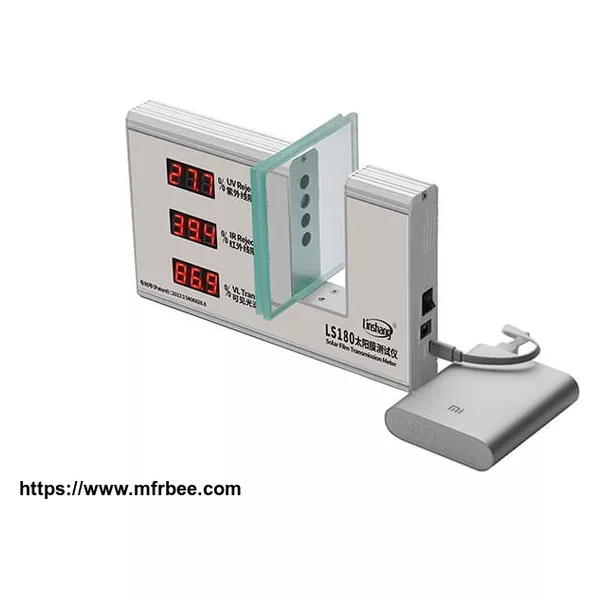

Linshang LS180 solar film transmission meter uses a parallel light path design, which is suitable for measuring various solar films, stick-film glass, architectural film, architectural glass and other materials. The window tint detector can test three values at the same time, namely ultraviolet rejection rate, infrared rejection rate and visible light transmittance. The meter has high data accuracy and is not affected by the location of the sample. The operation and reading are very simple.
