UV puck LS132
Product Quick Detail
- FOB Price
- USD $148.00 / Piece
- Place Of Origin
- China(Mainland)
- Minimum Order
- 1
- Packaging
- 1 pc each box
- Delivery
- 10 Days
Specifications

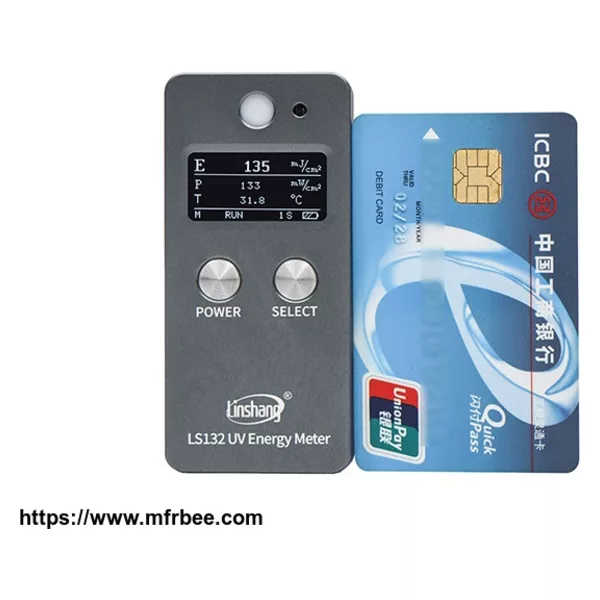

LS132 UV energy meter is a professional ultraviolet measurement tool for detecting UV energy and UV intensity in high-pressure mercury lamps, halogen lamps and other light sources.
ApplicationLight intensity, energy and temperature measurement of high pressure mercury lamp
Spectral range 315nm --- 400nm, λp = 365nm
Power measuring range 0 --- 2000 mW/cm²
Power resolution 0.1 mW/cm²
Energy measuring range 0 - 999999mJ/cm²
Energy measuring accuracy ± 10% , ± 5% (typical)
Sampling speed 2048 times/second
Recording period 32 min
Power supply Rechargeable lithium battery 3.7V@400mAh
Display 128X64 Dot matrix OLED
Dimension 95mm X 44mm X7.6mm(L*W*H)
Weight 57g
