UV energy meter LS133
Product Quick Detail
- FOB Price
- USD $148.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China(Mainland)
- Packaging
- 1 pc each box
- Delivery
- 10 Days
Specifications

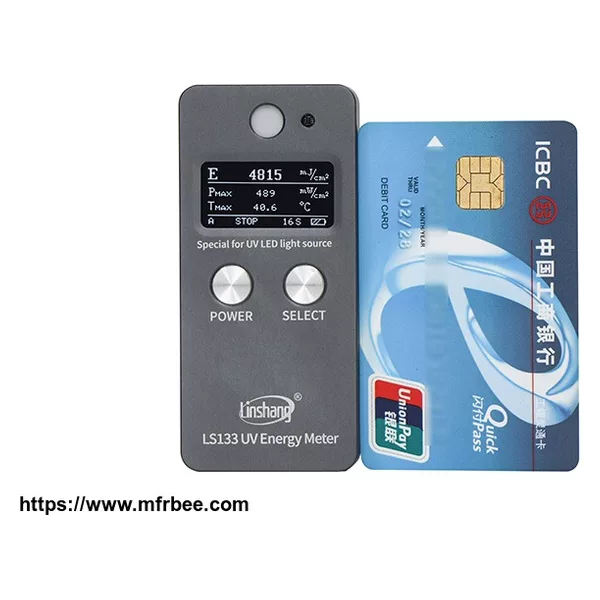

LS133 UV energy meter can display UV irradiation intensity, UV energy and temperature at the same time. This UV integrator is suitable for measuring various UV LED light sources such as 365nm,
385nm, 395nm, 405nm, etc.
Application Light intensity, energy and
temperature measurement
of UV LED light sources
Spectral range 340nm --- 420nm, calibrated at 395nm LED light source
Power measuring range 0 --- 40000 mW/cm²
Power resolution 1 mW/cm²
Energy measuring range 0 - 999999mJ/cm²
Energy measuring accuracy ± 10% , ± 5% (typical)
Sampling speed 2048 times/second
Recording period 32 min
Power supply Rechargeable lithium battery 3.7V@400mAh
Display 128X64 Dot matrix OLED
Dimension 95mm X 44mm X7.6mm(L*W*H)
Weight 57g
