Unilateral temperature measurement accuracy ± 0.5°C
Temperature unevenness of double lamps 2°C
Temperature measurement range -55°C to + 125°C
Temperature test time 1 minute
IR peak wavelength 940nm
Insulation rate measurement accuracy ± 2% (colorless and uniform trasparent materials)
Test glass size (not included) 200mm × 160mm
Weight about 13 kg
Dimension 340mm ×200mm ×400 mm(L*W*H)
Power supply 220V AC
2. The LS301 solar film temperature meter can simultaneously display the real-time temperature value and the insulation rate of tested materials during the test.
3. Now we will demonstrate how to read and understand the data accordign to the following pictures
(1) The left side of the figure below is the data when no test sample is placed and the power is on. You can see that the real-time temperature on both sides is 20.8 ℃ and the heat insulation
rate is 0.0%.
(2) After placing 2 test samples, the instrument will immediately display the heat insulation rate of the glass. After the light is turned on, the insulation data will be locked on the interface.
(Be sure to put the test sample before turning on the light, otherwise the insulation rate cannot be tested.)

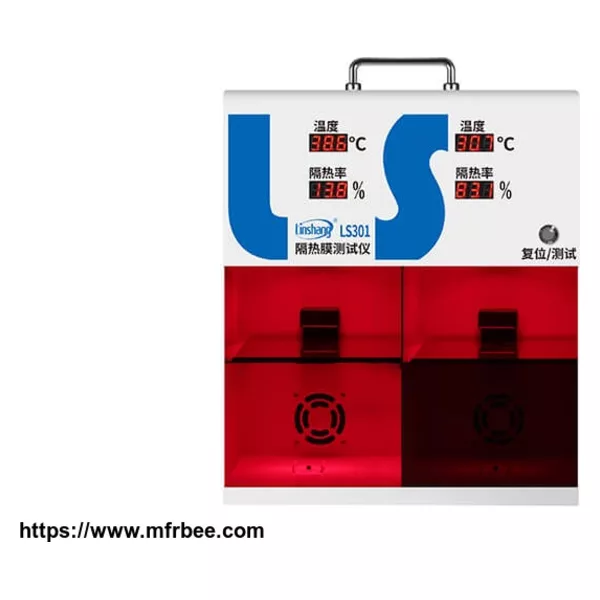

(3) After the light is turned on, the real-time temperature above the instrument will rise. As can be seen from the right side of the figure below, the real-time temperature will rise to 38.6℃
and 30.7 ℃, respectively.
