Infrared power meter LS122

FOB Price
USD $70.00 / Piece
Place Of Origin
China(Mainland)
Minimum Order
1
Packaging
1 pc each box
Delivery
10 Days

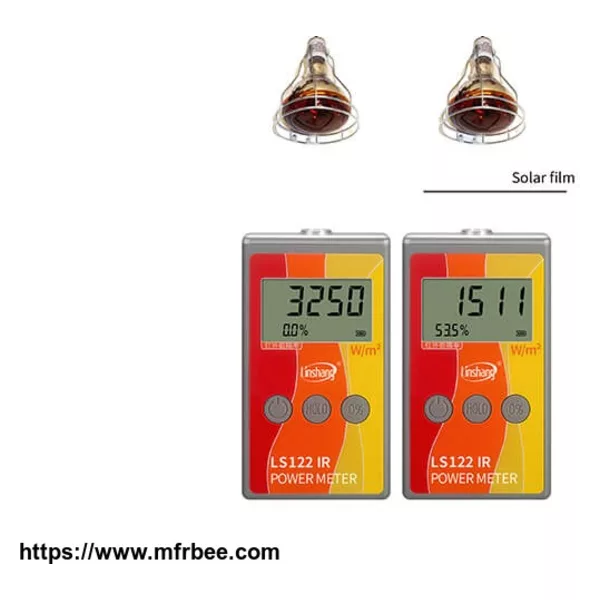

1. The LS122 solar power meter is suitable for testing the infrared rejection performance of architectural film, automobile thermal insulation film, solar film, thermal insulation glass and solar equipment.
2. It can be used to measure the radiation intensity (infrared power density) of infrared light sources (sun, infrared lamps, etc.).
3. The infrared power meter has a fast measurement speed which can automatically convert the infrared rejection rate of the material. The rejection rate will be displayed on the interface directly for easy reading.
4. The solar power meter has wide spectral response which can test the infrared intensity from 1000nm-1700nm wavelength.
Power range 0-40000 W / m²
Measurement accuracy ± 10%
Infrared rejection rate -999%-100%
Spectral response 1000nm-1700nm
Photosensitive aperture 10mm
Dimension 125mm × 69mm × 24.5mm (L*W*H)
Weight about 140 g (including battery)
Working temperature -20 ° C-+ 70 ° C
Power supply AAA alkaline dry batteries
