Measurement accuracy
|
± 0.1mm
|
Measurement range
|
Glass thickness 70mm,air layer thickness 45mm
|
Weight
|
330g
|
Battery
|
4 AAA alkaline dry batteries
|
Display
|
240 * 160 dot matrix LCD
|
Dimension
|
130mm×72mm×33mm (L*W*H)
|

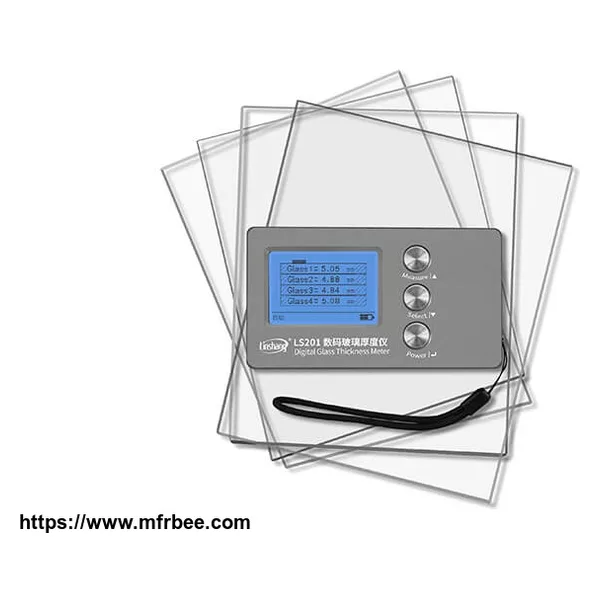

1. The digital glass thickness meter can nondestructively test the glass thickness. With laser reflection principle, the glass thickness can be measured on single side of the glass.
2. The accuracy of the glass thickness meter can be 0.1mm.
3.The LS201 digital glass can measure triple glazing, laminated glass and other types of glass.
4.Automatic measurement mode and manual measurement mode can be switched, the instrument can accurately test the thickness of insulating glass of various specifications.
