Large Capacity High Speed Centrifuge PM20
Product Quick Detail
- Minimum Order
- 10
- Place Of Origin
- China (Mainland)
- Packaging
- 1 piece each Cardboard box
- Delivery
- 20 Days
Specifications
Specification:
| Speed range(rpm) | 0-20000rpm adjustable |
| Max Capacity(ml) | 4*100ml |
| RCF range (xg) | 0-27800xg adjustable |
| Noise(dBA) | ≦58dB(A) |
| Time range | 1-99minutes adjustable |
| Speed accuracy | ±20r/min |
| Dimension(mm) | 330*435*340mm |
| Net weight(without rotor) | 28KGS |
| Power supply | AC220-240V,50/60HZ,5A,0.5KW |

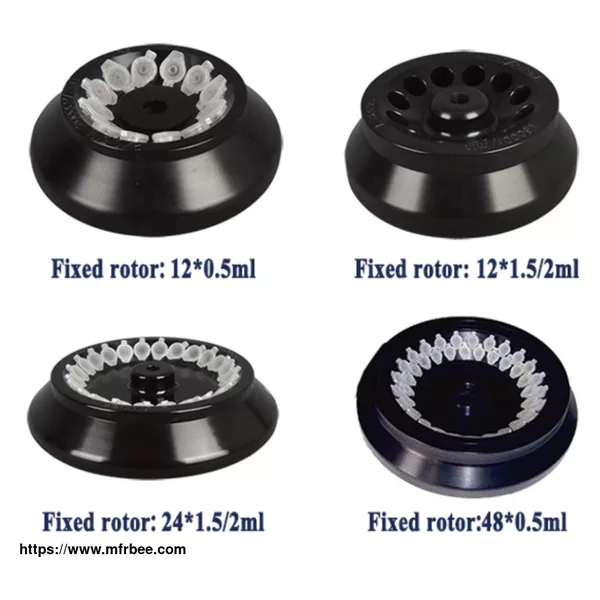

| Rotor List | |||
| Rotor Number | Max Speed | Max Capacity | Max RCF |
| NO.1 fixed rotor | 20000r/min | 12x0.5ml | 20380xg |
| NO.2 fixed rotor | 20000r/min | 12x1.5/2.2ml | 27800xg |
| NO.3 fixed rotor | 16000r/min | 24x1.5/2.2ml | 23800xg |
| NO.4 fixed rotor | 16000r/min | 48x0.5ml | 21900xg |
| NO.5 fixed rotor | 16000r/min | 10x5ml | 17780xg |
| NO.6 fixed rotor | 15000r/min | 12x10ml | 19910xg |
| NO.7 fixed rotor | 13000r/min | 6x50ml | 18550xg |
| NO.8 fixed rotor | 11000r/min | 4x100ml | 13280xg |
| NO.9fixed rotor | 13000r/min | 48x1.5/2.2ml | 17980xg |
| NO.10fixed rotor | 11000r/min | 10x15ml(conical) | 13960xg |
| NO.11fixed rotor | 11000r/min | 12x15ml(round) | 13960xg |
Features:
- Microcomputer control, LED digital display.
- It adopts imported high-power electric drive, the speed and centrifugal force are mutually set, and the centrifugal force can be directly set.
- The door cover is lined with steel plate protection, safe and durable
- Parameters can be changed at any time during operation, countless shutdowns
- Overspeed protection function
- Electric function, can be centrifuged briefly.
- Brushless DC motor, durable, fast speed, low power consumption
- Equipped with mechanical door lock, with door cover protection, overspeed and other protection functions, automatic fault warning function, and enhanced safety
